Product Overview: Precision Engineering for Professional Workspaces

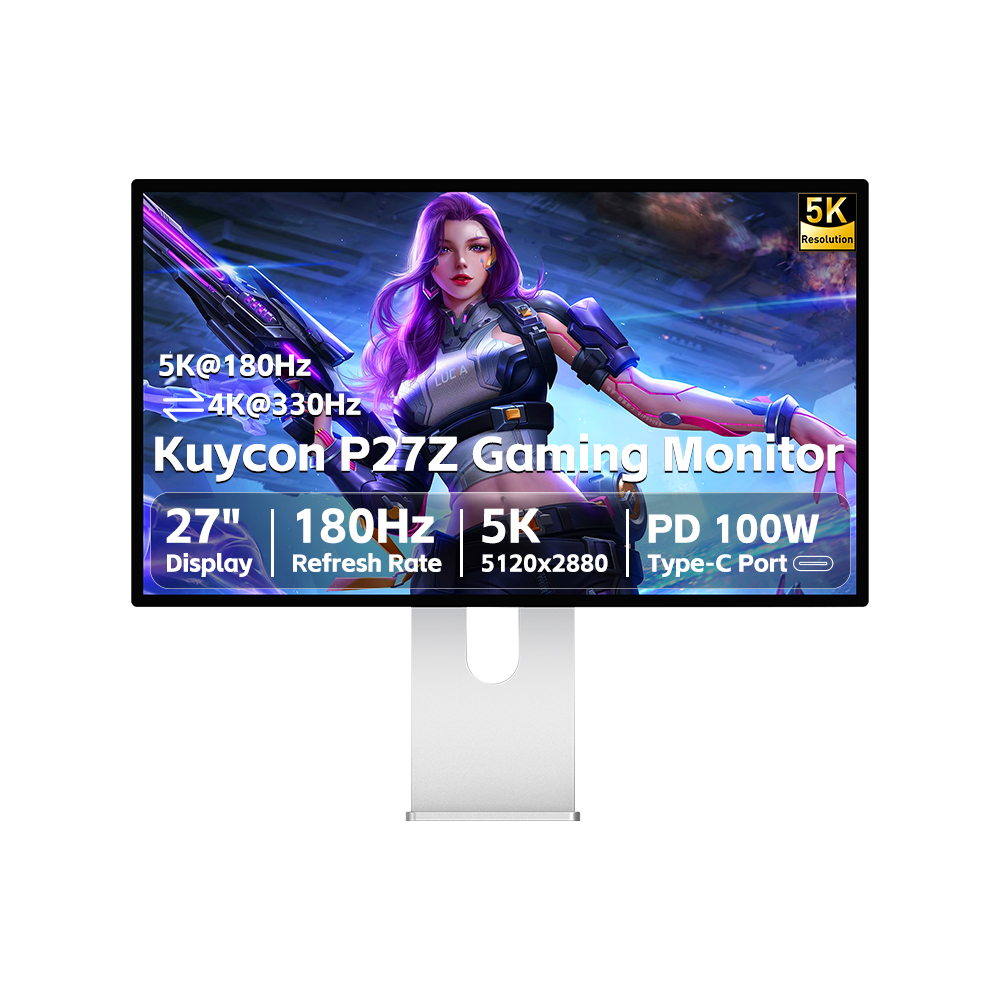

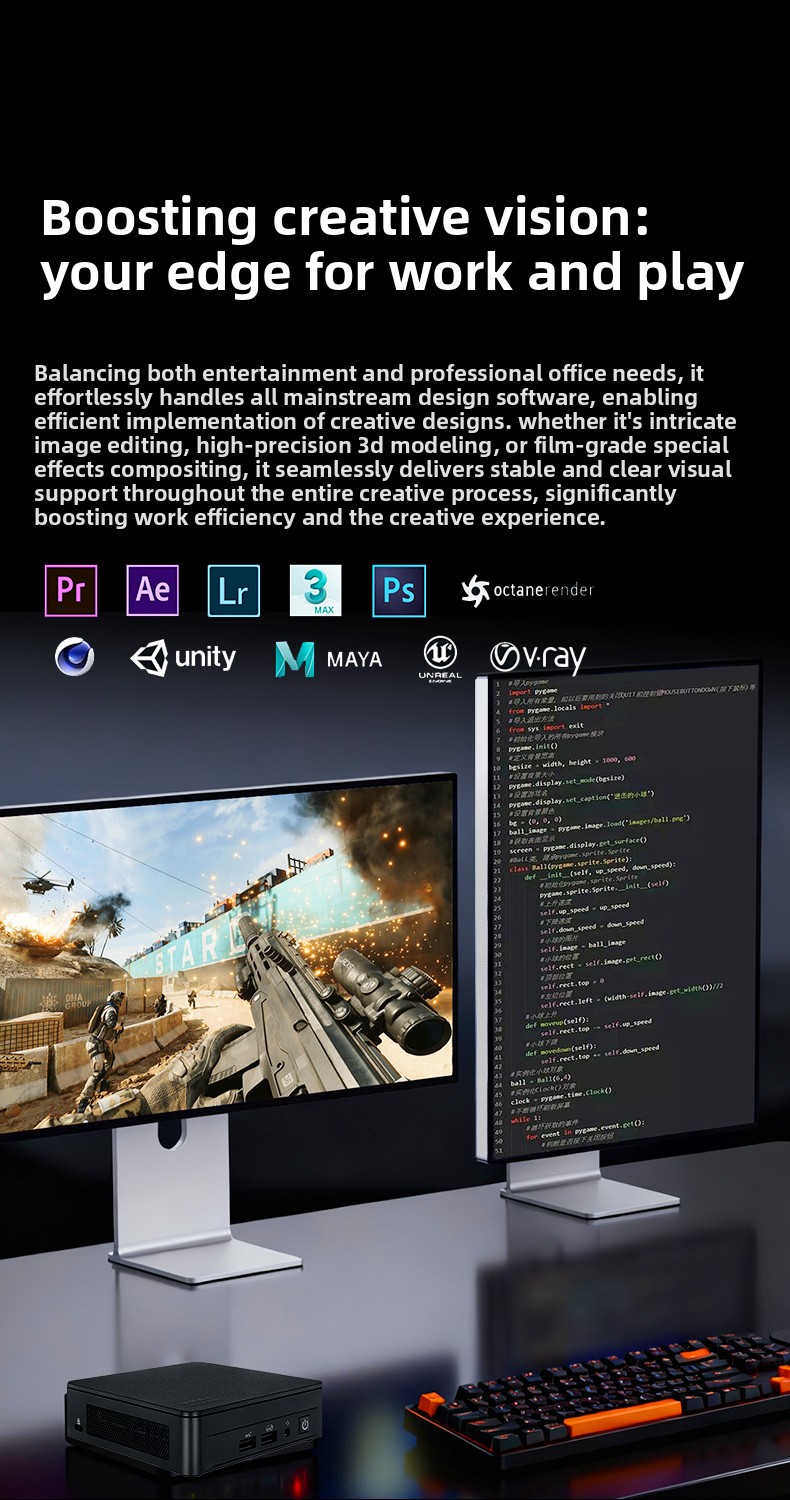

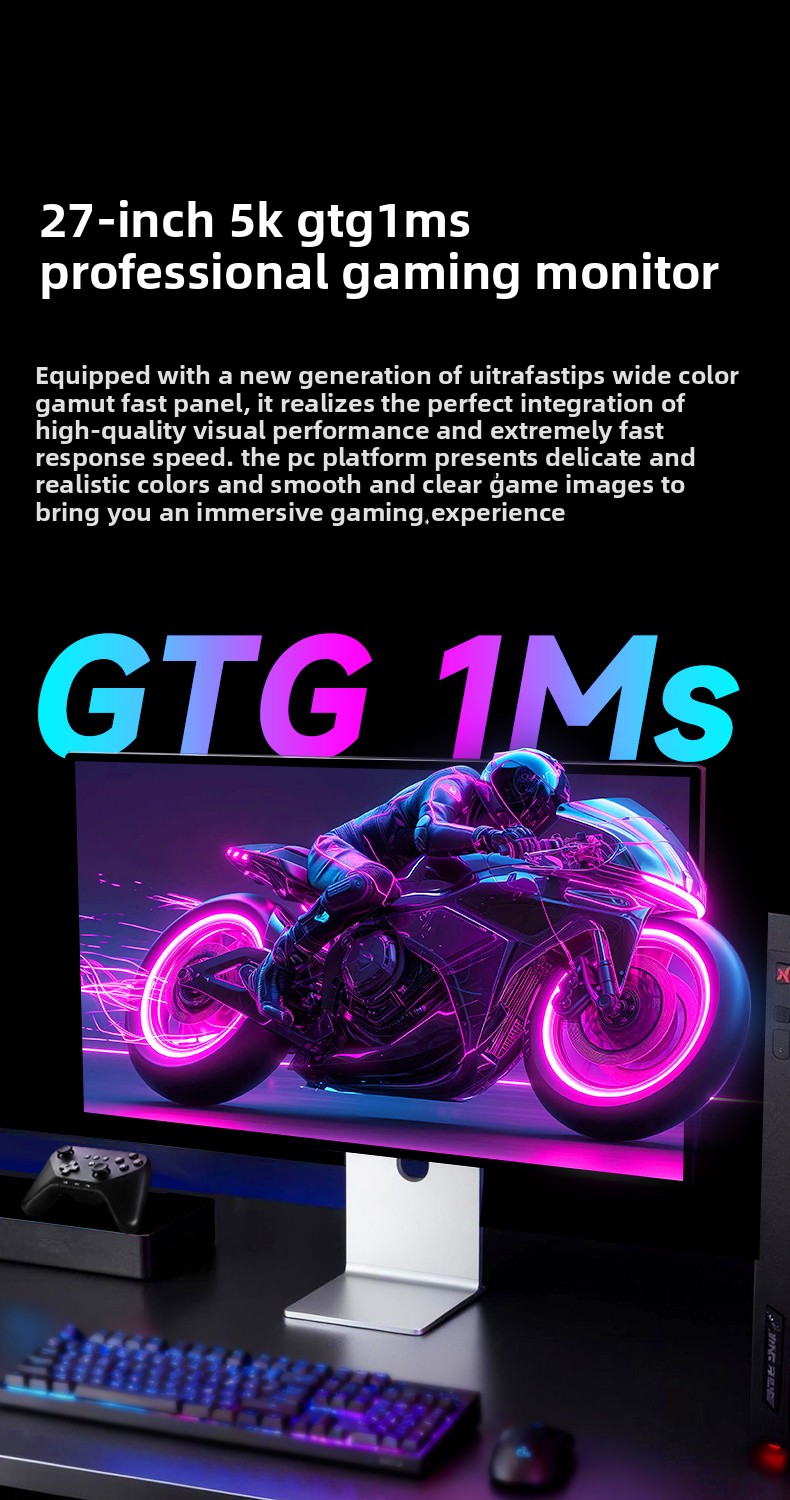

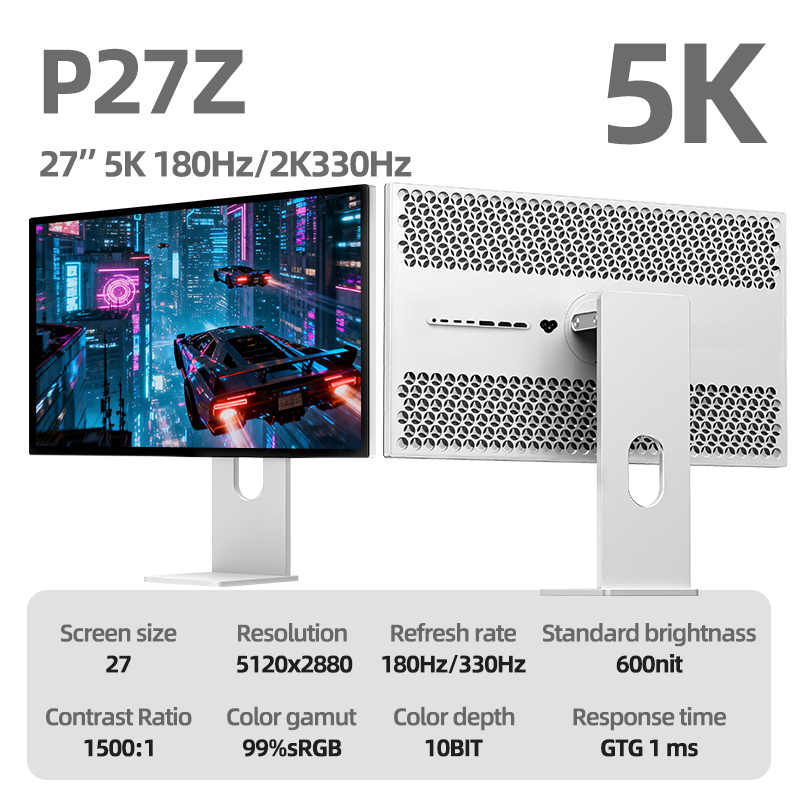

The Kuycon P27Z monitor redefines visual clarity through advanced active matrix technology, integrating a highly responsive thin-film transistor (TFT) with a next-generation Ultra Fast IPS LCD panel. Designed specifically for demanding environments where color accuracy and rapid pixel response are non-negotiable, this display delivers an expansive 27-inch viewable area with a stunning 5120 x 2880 (16:9) resolution. At a dense 218PPI, text appears exceptionally sharp, and complex graphical assets are rendered with absolute precision, making it an indispensable tool for intensive creative workflows and technical analysis.

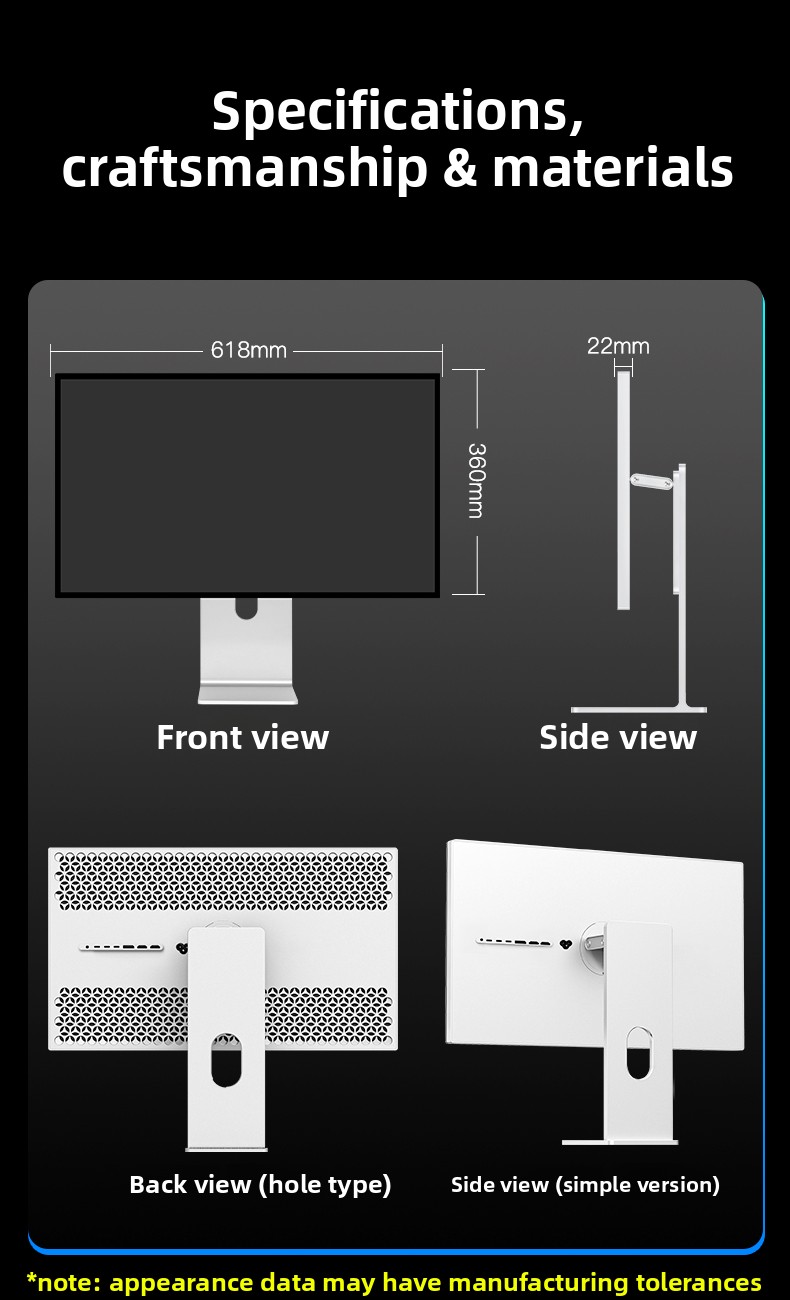

Beyond its internal specifications, the physical construction of the P27Z reflects uncompromising industrial design. The chassis is meticulously carved from 6063 Aluminum Alloy using CNC machining, followed by a 180-grit sandblasting and anodizing process. This results in a cool, tactile metallic finish that resists fingerprints while providing a substantial, premium feel suitable for executive offices and modern studios. Paired with a native obsidian optical compensation layer and a full-fit borderless mirror high-transmittance AR panel, the screen actively absorbs ambient light, minimizing glare while maintaining deep, rich contrast for prolonged viewing comfort.
Core Capabilities & Technical Innovations

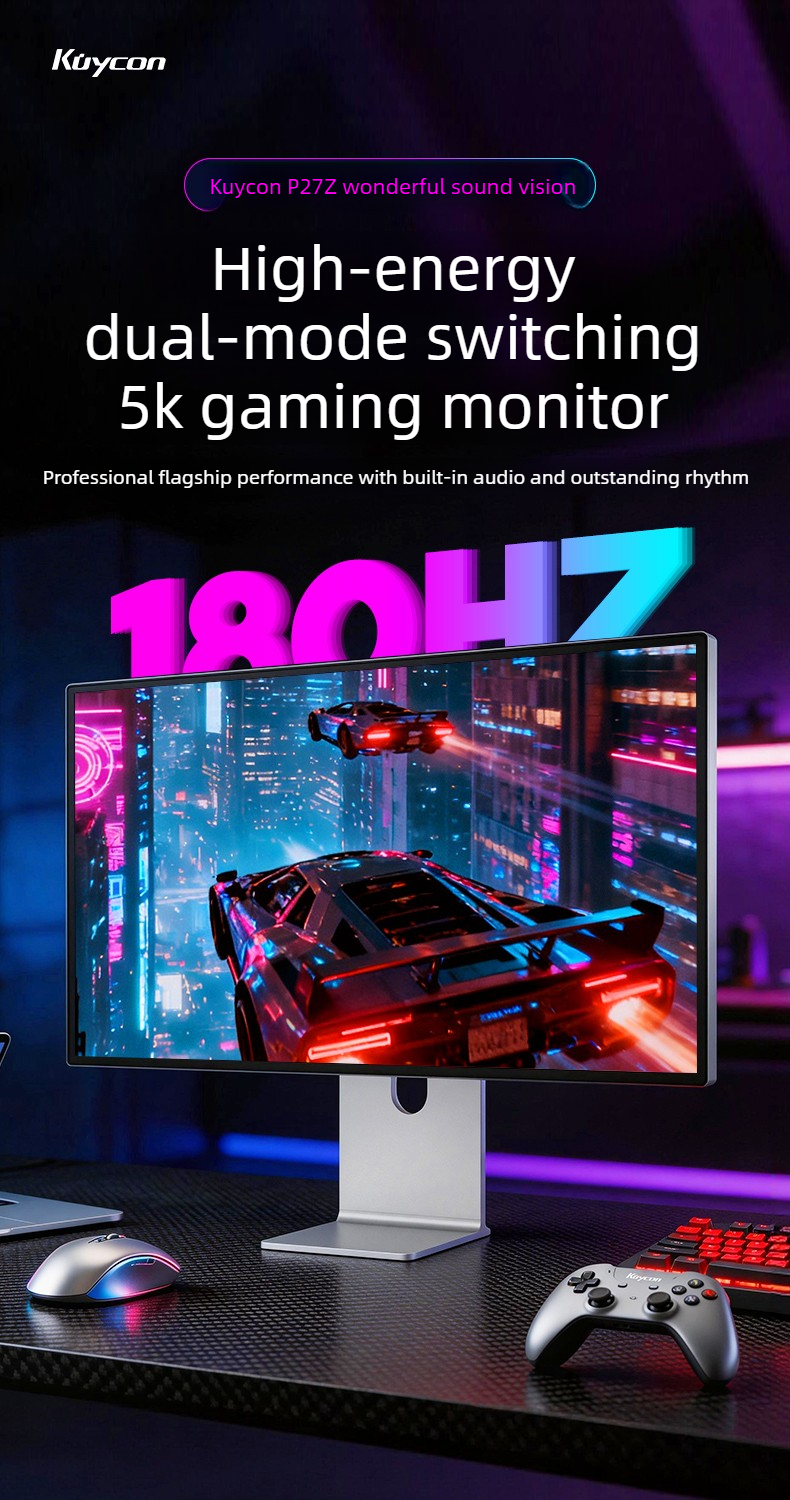

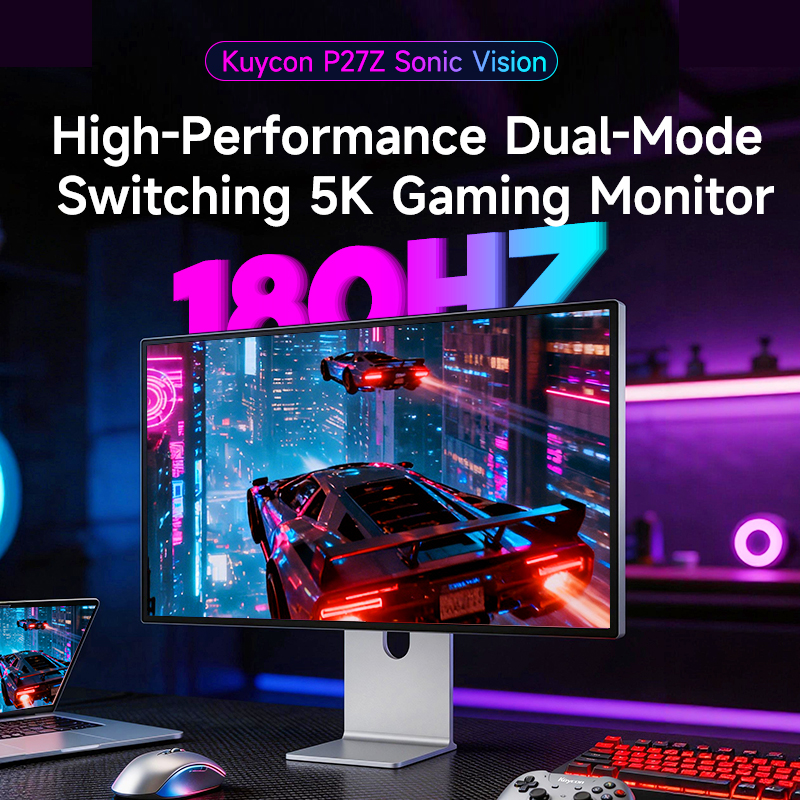

Dual-Mode Refresh Rate Mastery
The monitor supports dual-mode fast switching, allowing users to toggle instantly between maximum refresh rates of 5K@180Hz and 2K@330Hz. This innovative feature enables facilities to utilize the same hardware for ultra-high-resolution creative tasks during the day and exceptionally high-framerate competitive gaming or simulation scenarios, maximizing the return on hardware investment.
Professional Color Management & Optics
Engineered for color-critical applications, the display achieves a strict factory calibration of ΔE-Delta-E <2. It boasts extensive color gamut coverage, reaching 99% sRGB and 98% DCI-P3, while supporting FRC 10-bit color depth display for over 1.07 billion colors. Additional specialized modes include gamut clipping, M-BOOK mode, and grayscale display mode. With up to 600 nits brightness, a 1500:1 contrast ratio, and HDR600 support, visual assets are reproduced with lifelike accuracy. Blue light reduction, OD acceleration response, and VRR variable refresh rate work in tandem to minimize eye fatigue during extended operational hours.
Universal Ecosystem Connectivity

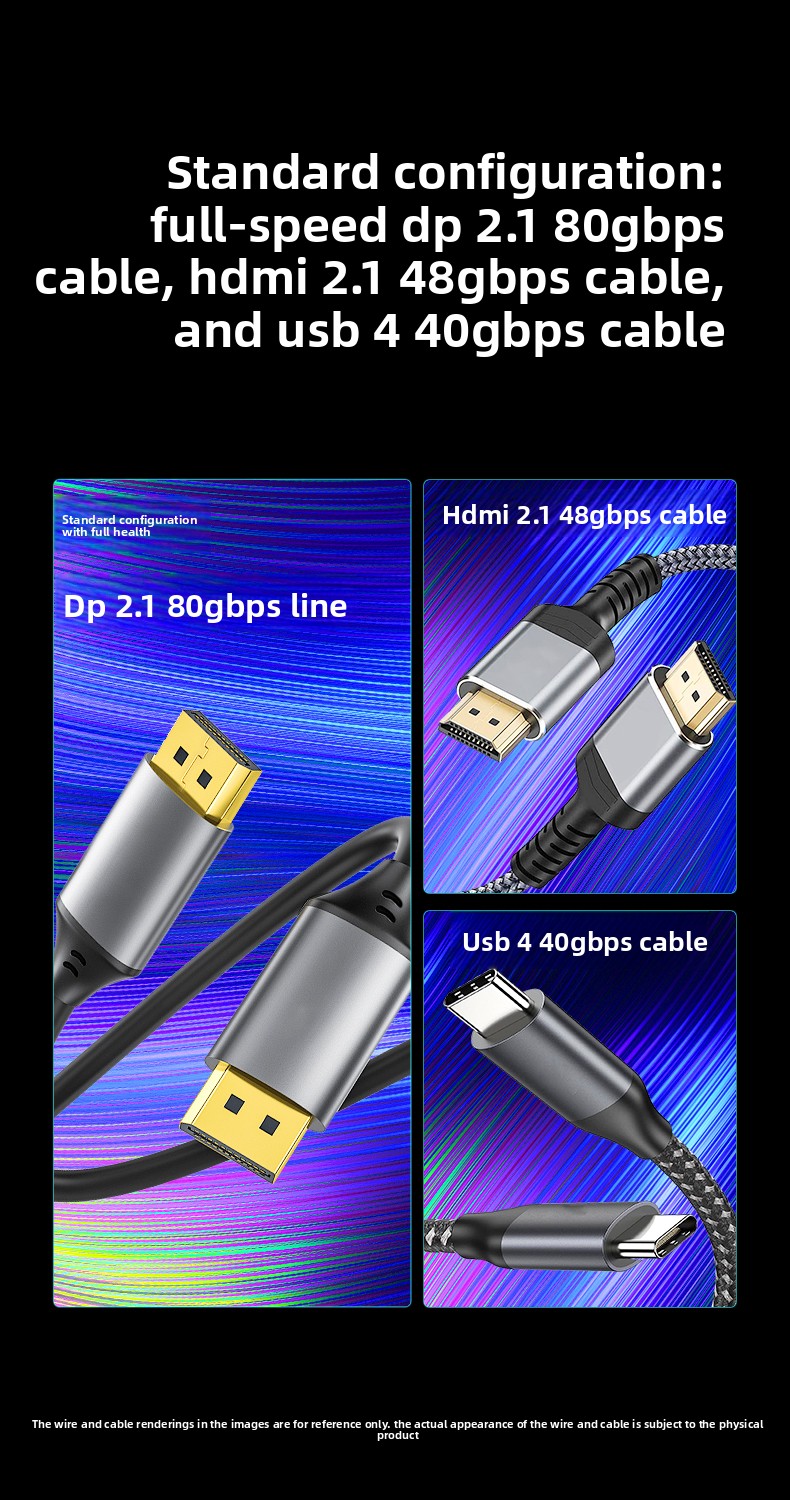

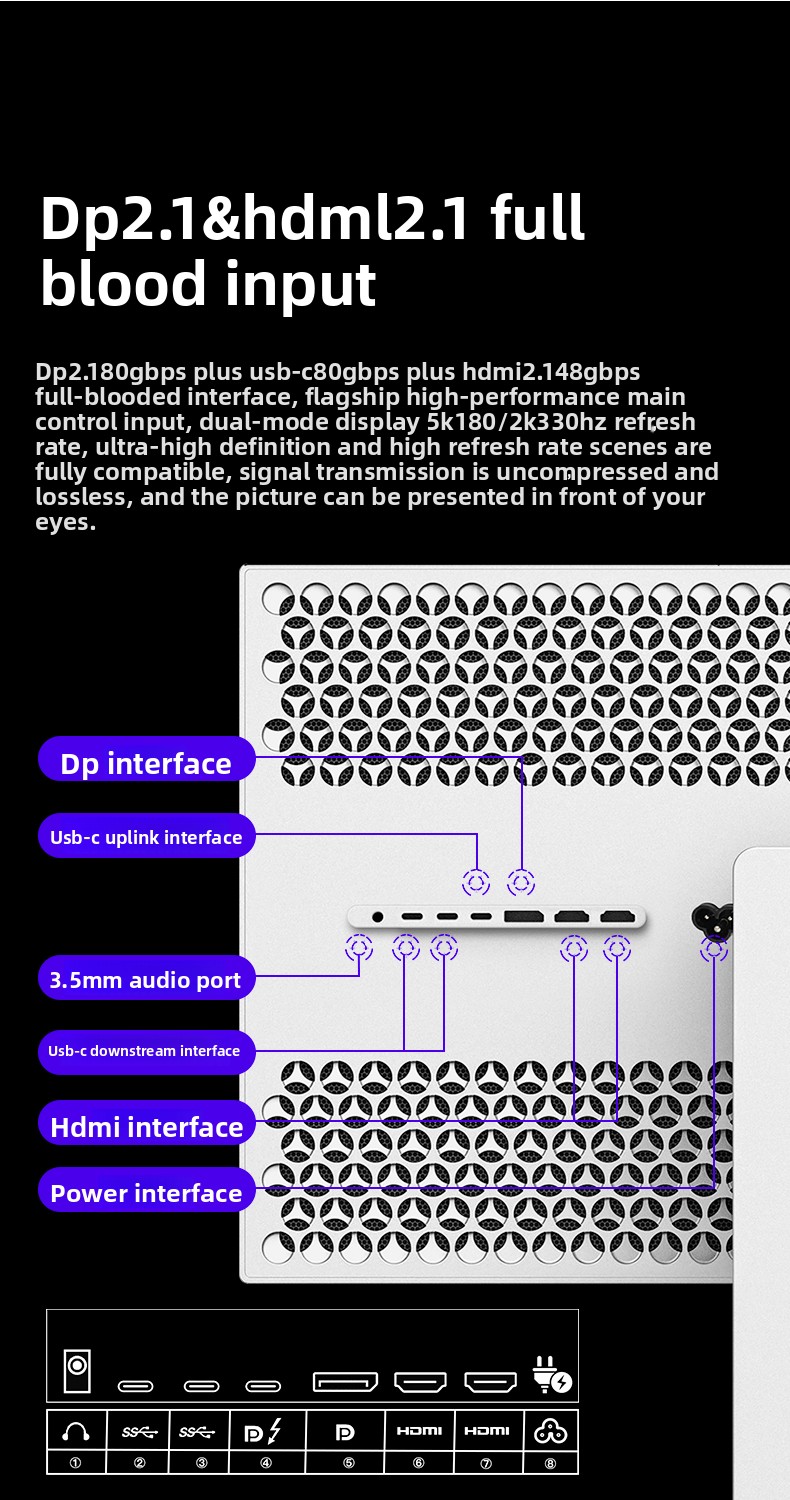

Digital connectivity is handled via a versatile array of ports including USB Type-C 80Gbps, HDMI 2.1 48Gbps, and DisplayPort 2.1 80Gbps. It is fully compatible with Thunderbolt 5 for Mac devices and HDMI 2.1 DSC input. The monitor supplies power to compatible laptops via USB Type-C cable using the USB Power Delivery protocol (up to 100W), while simultaneously receiving video and data signals. This Thunderbolt 4/5 and USB4 compatibility drastically reduces cable clutter, allowing a single connection to power a workstation while driving a 5K display.
Ergonomics & Integrated Audio
Installation flexibility is ensured by a removable stand that supports height adjustment and multi-angle rotation, alongside standard VESA™ 100 mm mounting holes for custom arm deployment. The unit is equipped with 2 USB Type-C downstream data expansion ports for peripheral management and features built-in stereo 6-unit dual-channel speakers, delivering clear, spatial audio without the need for external desktop speakers.

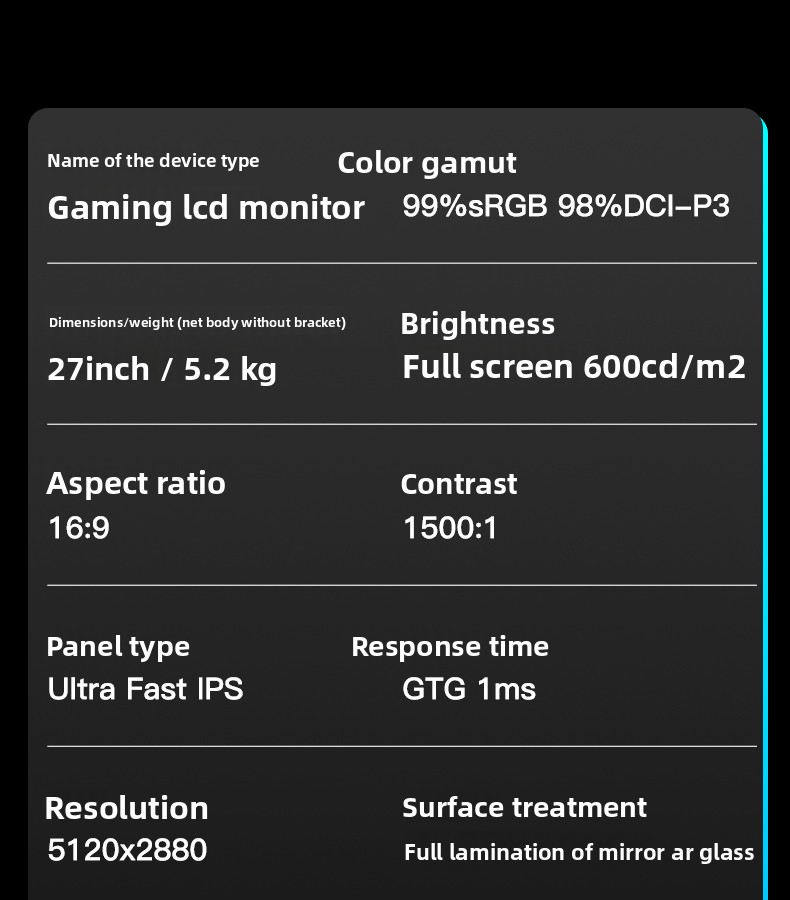

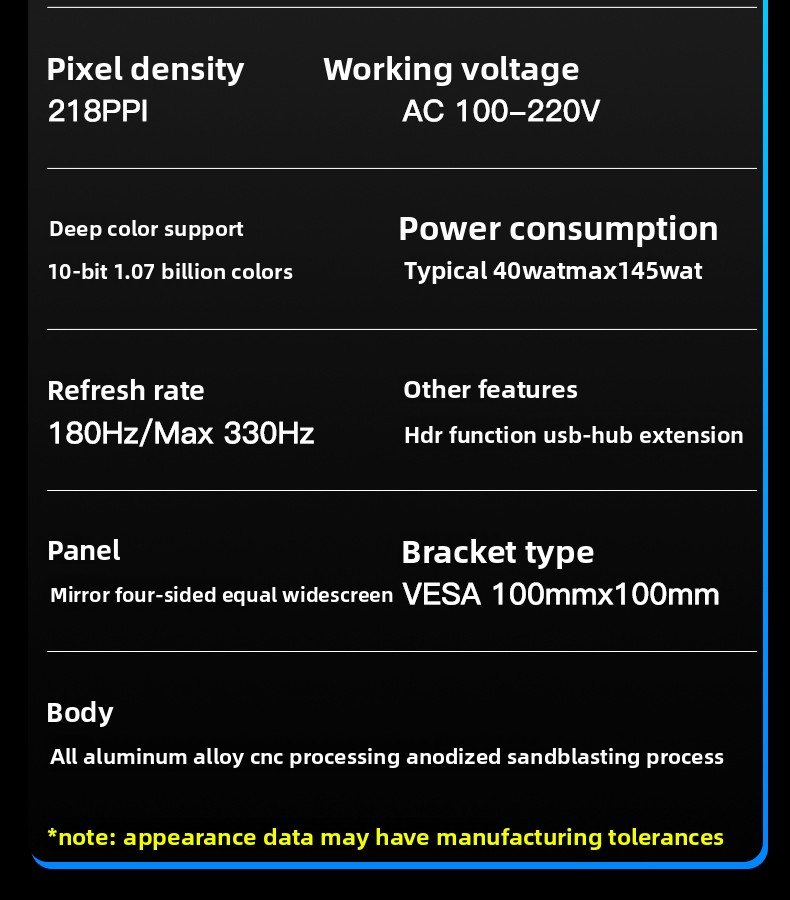

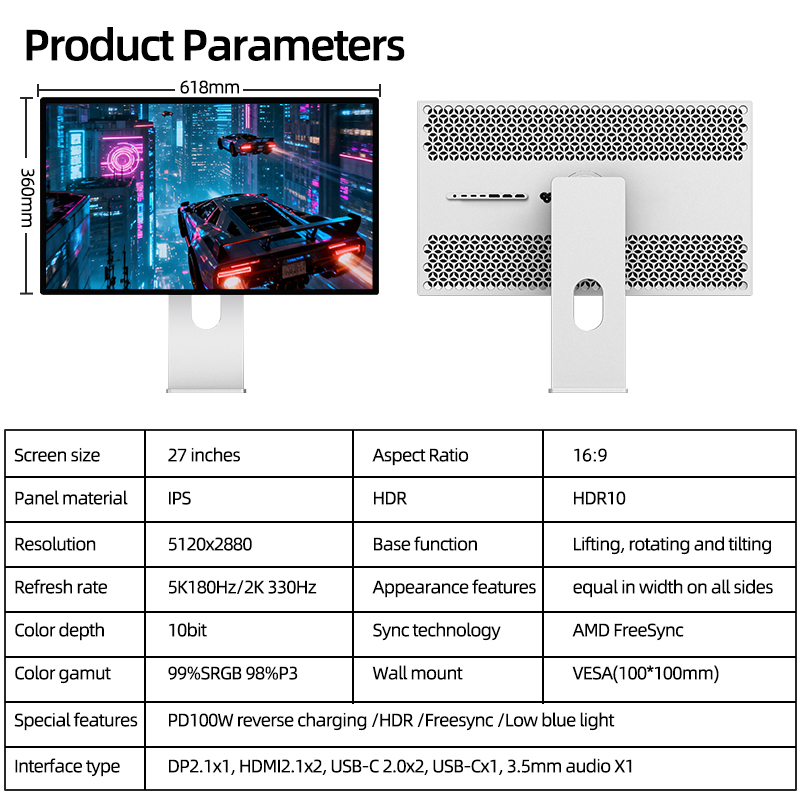

Specifications
Kuycon P27Z |
Product Name | Gaming LCD Monitor | Color Gamut | 99%srGB 98%DCI-P3 |
Screen Size | 27 Inches | Brightness | Full Screen 600cd/m2 |
Aspect Ratio | 16:9 | Contrast Ratio | 1500:1 |
Panel Type | Ultra Fast IPS | Response Time | GTG 1ms |
Resolution | 5120x2880 | Screen Coating | Mirror AR glass with full lamination |
Pixel Density | 218PPI | Operating Voltage | AC 100-220V |
Refresh Rate | 180Hz/Max 330Hz | Power Consumption | Typical:40W,Max:145W |
Color Depth Support | 10-bit,1.07 Billion Colors | Other Features | USB-HUB |
HDR | HDR600 | Panel Surface | Mirror screen with four-sided uniform bezels |
Body Material | 6063 Aluminum Alloy CNC | USB | USB2.0 |
Body Craft | 180 Grit Sandblasting,Anodized | Stand Type | VESA 100mm*100mm |
Weight | 5.2KG(Body only,stand excluded) | Stand Functions | Height Adjustment &Multi-angle Rotation |
HDMI | HDMI2.1 FRL48Gbps | Power Adapter | Built-in Power Supply |
DP | DP2.1 UHBR20 80Gbps | Remote Control | IR Remote Control (with battery) |
USB-C | USB-C 80Gbps【PD100W】 | USB Flash Drive | 8GB Card-style USB Flash Drive |
Commercial Procurement & Deployment Applications
For organizations outfitting creative departments, financial trading floors, or competitive e-sports arenas, the Kuycon P27Z offers exceptional operational value. The monitor is engineered for large-scale deployments where consistency and reliability are paramount. The inclusion of a built-in power supply eliminates external power brick clutter, significantly streamlining cable management across dozens of workstations or multi-monitor matrices. Furthermore, every unit undergoes rigorous factory calibration to guarantee the ΔE<2 color accuracy out of the box, ensuring absolute visual consistency across all deployed screens.

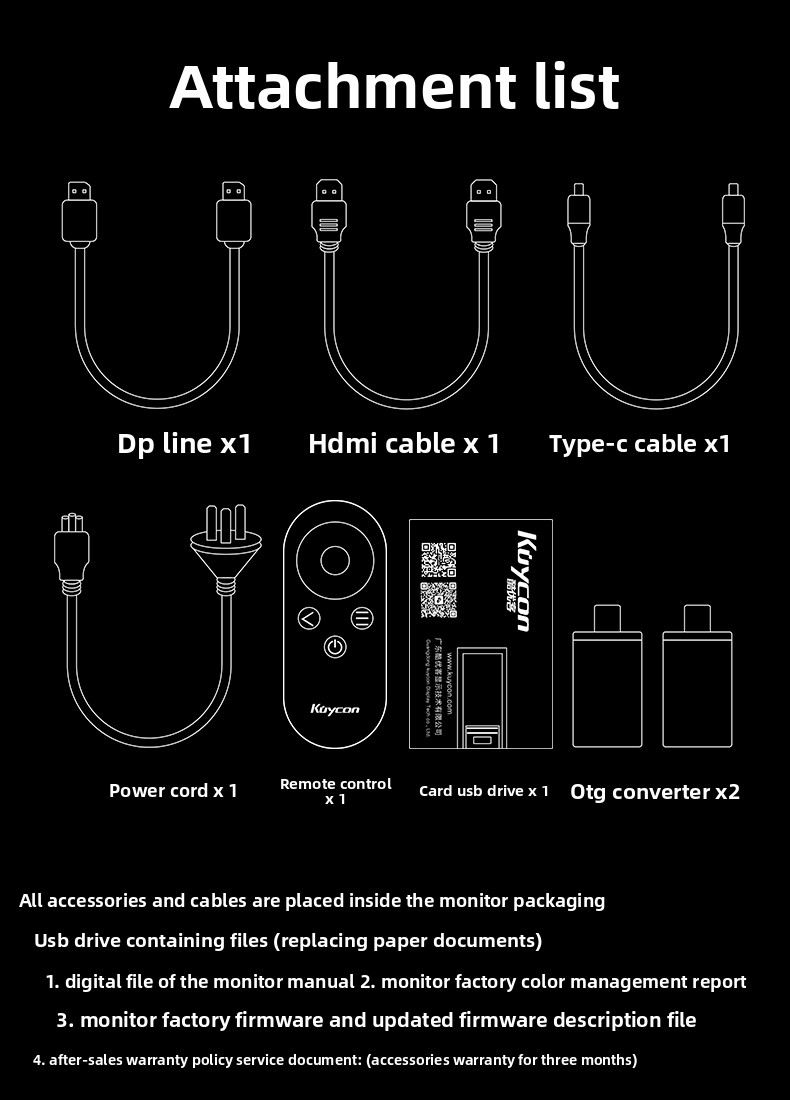

We support these displays with comprehensive quality assurance protocols and robust global logistics, providing procurement managers with the confidence needed for high-volume investments. Thoughtful enterprise additions, such as the included IR remote control and an 8GB card-style USB flash drive containing digital manuals and drivers, further simplify the IT setup process. Whether deployed in a design agency requiring strict color adherence or a facility demanding 330Hz responsiveness, this display adapts efficiently to diverse operational demands.
