Kuycon P24U Design Monitor With 600 Nits Brightness And 10-Bit Color

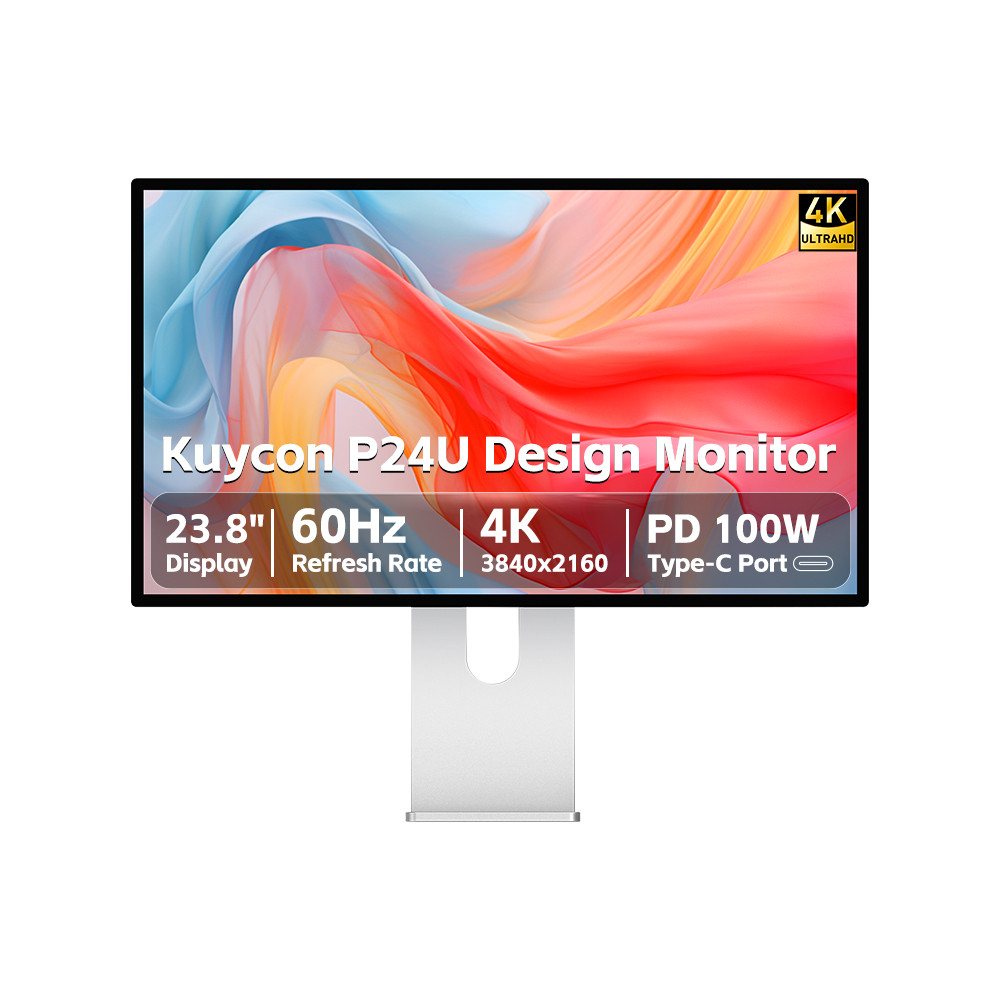

Product Overview: Kuycon P24U Design Monitor

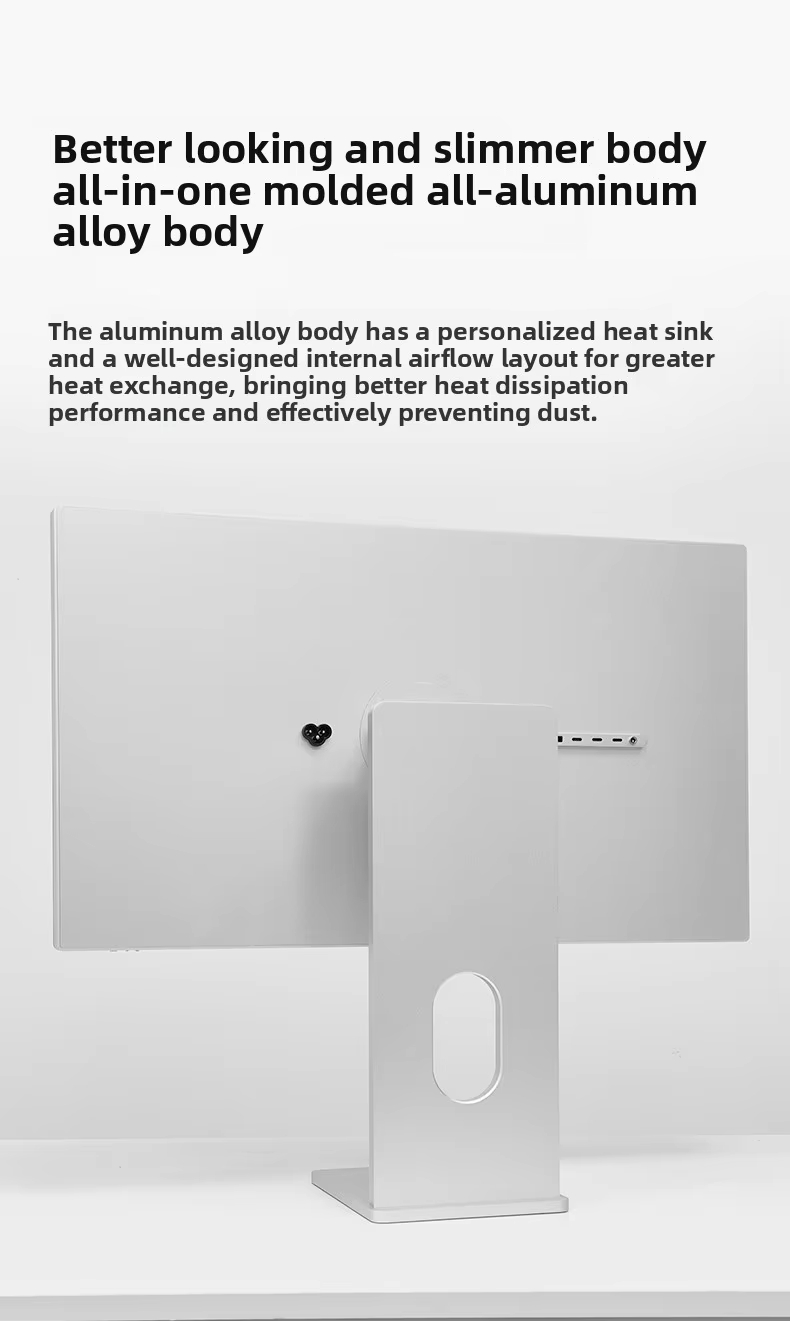

The Kuycon P24U Design Monitor is engineered to elevate the visual standards of creative studios, architectural firms, and professional workspaces. At its core, this display features advanced active matrix technology, a high-performance thin-film transistor (TFT), an IPS liquid crystal display, and a specialized KFS-LED backlight. Running your hand along the chassis, you will immediately notice the premium, cool-to-the-touch sensation of the aerospace-grade 6063 aluminum alloy. This CNC-machined, unibody construction is not merely about aesthetics; it provides exceptional thermal conductivity. This superior heat dissipation ensures that the monitor can sustain its impressive 600 nits of global brightness over extended operational hours without thermal throttling, thereby prolonging the lifespan of your equipment.

Key Monitor Features Include:

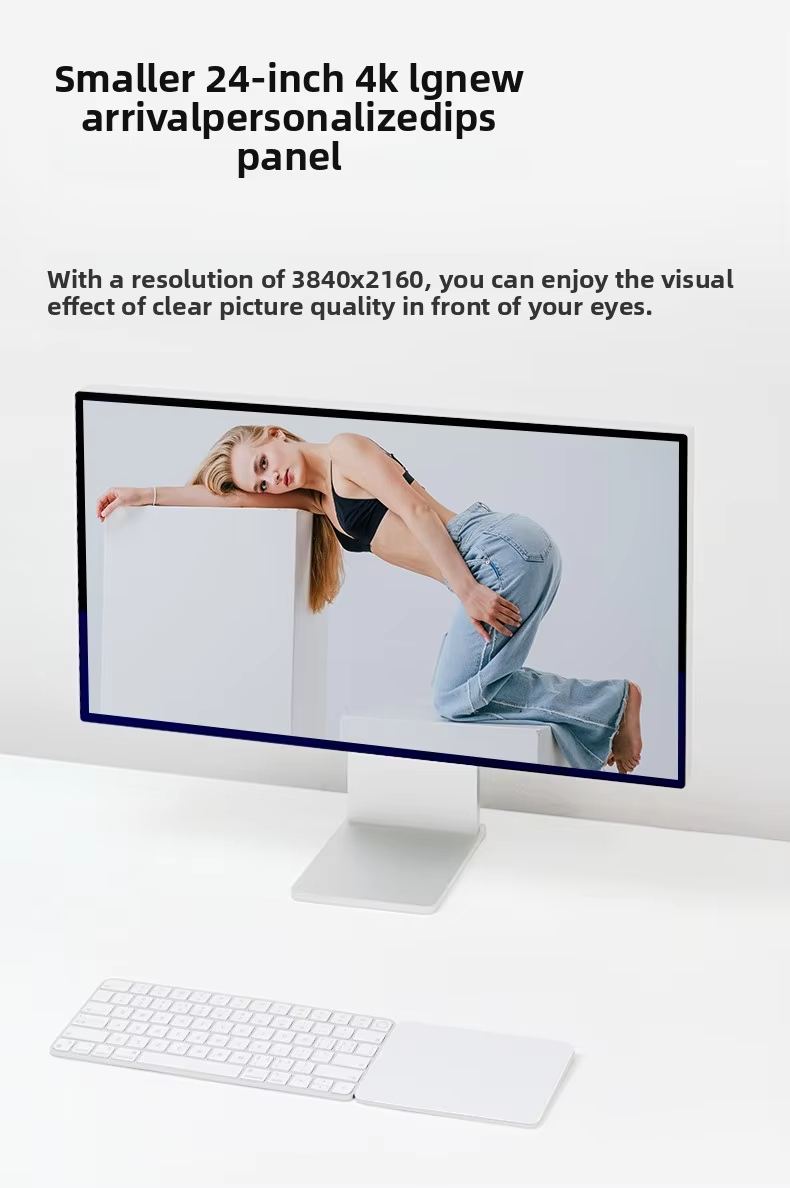

• Immersive Visuals: Offering a 23.8-inch viewable area (measured diagonally) with a pristine 3840 x 2160 (16:9) resolution and 10-bit color depth. It supports full-screen display at lower resolutions, ensuring crisp rendering for intricate design files and complex spreadsheets.

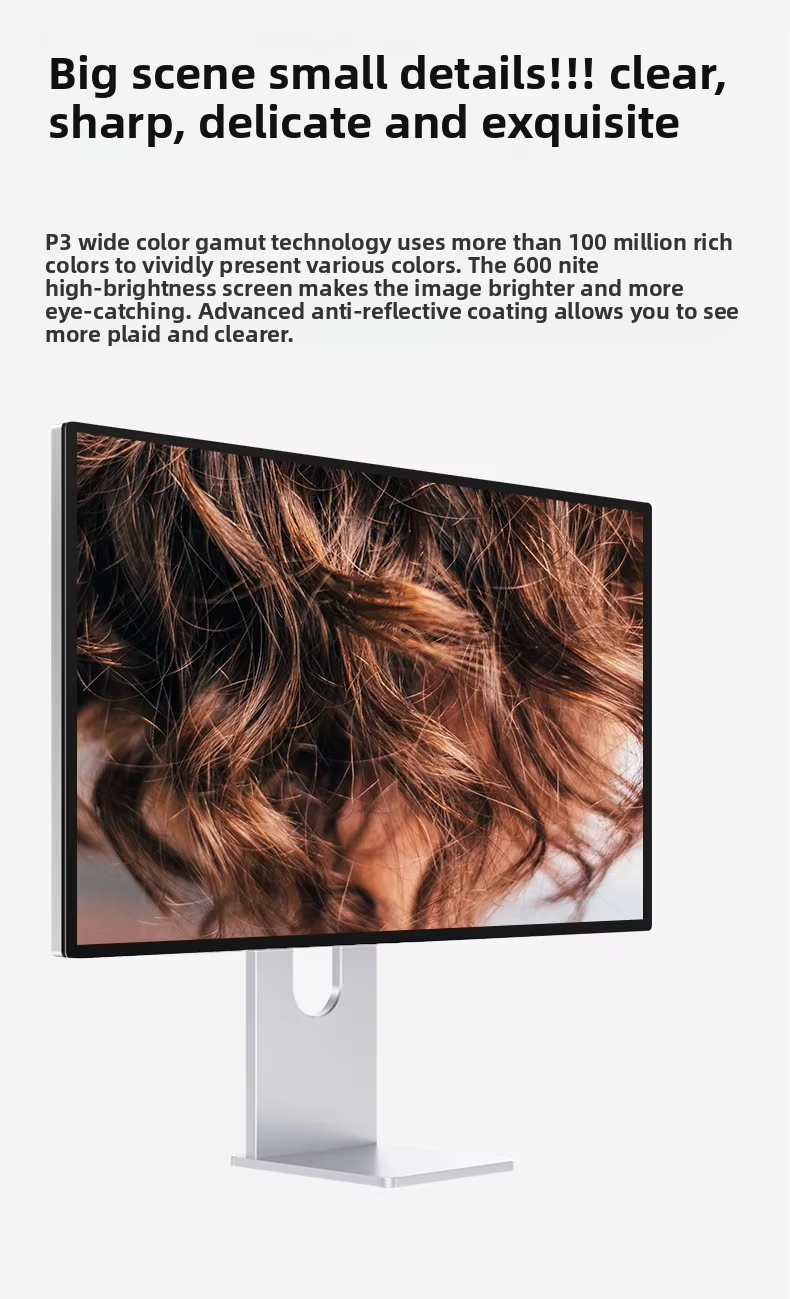

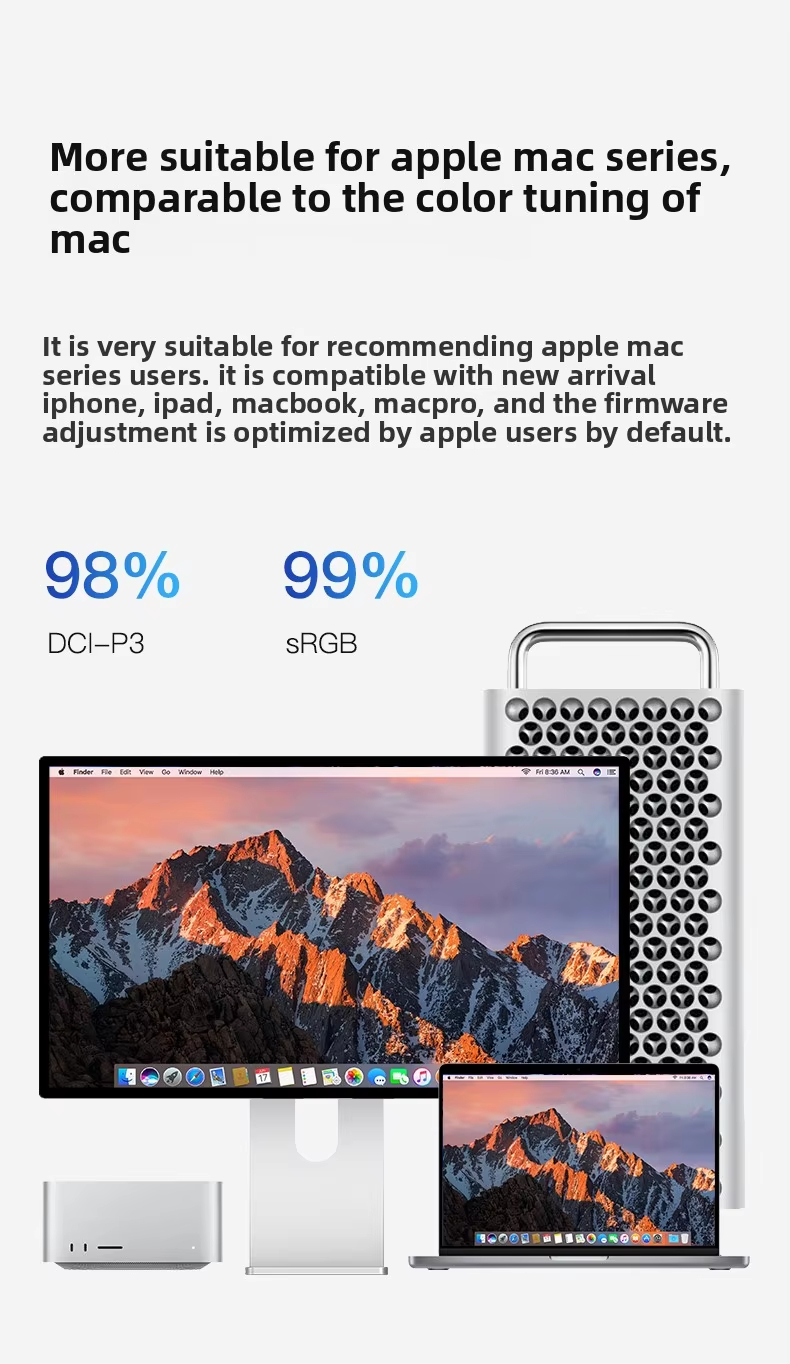

• Studio-Grade Color: Color gamut coverage: 99% sRGB, 98% DCI-P3. Factory-calibrated to achieve a precise ΔE-Delta-E <2, this monitor provides exceptional color accuracy right out of the box, crucial for video editing and graphic design tasks.

• High Luminance: Up to 600 nits global brightness guarantees clear visibility even in brightly lit environments.

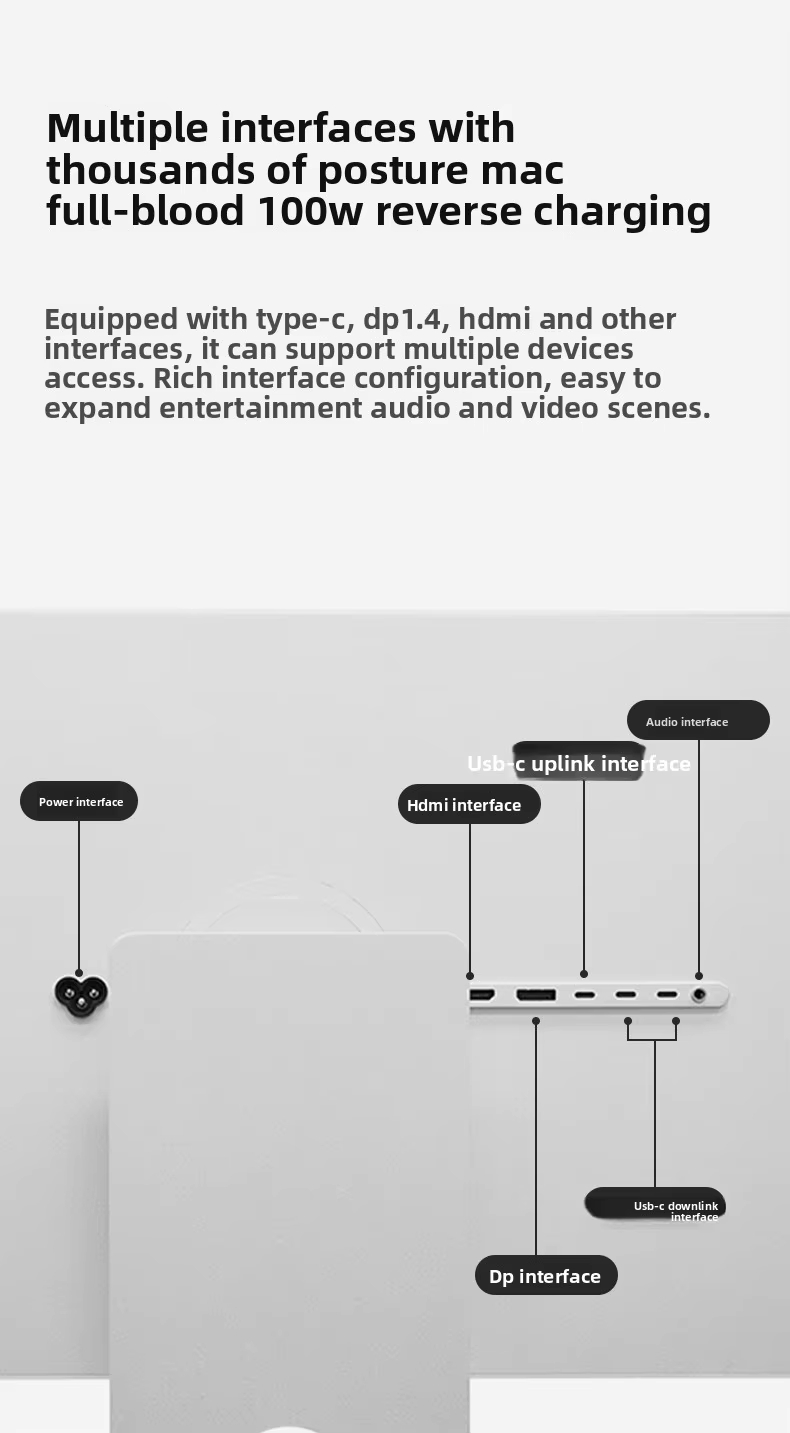

• Versatile Connectivity: Digital connectivity via USB Type-C, HDMI, and DisplayPort offers direct integration into any existing IT infrastructure.

• Streamlined Power Delivery: Delivers power to compatible laptops via USB PowerDelivery over a single USB Type-C cable (max. 100W), while receiving video and data signals; compatible with Thunderbolt 3 / USB4. This single-cable solution drastically reduces desktop clutter.

• Premium Glass & Coating: OGS fully laminated mirror glass with four-sided uniform bezels. The display is treated with a new-generation AR anti-glare coating and AF anti-fingerprint coating, significantly reducing harsh reflections and maintaining a pristine surface.

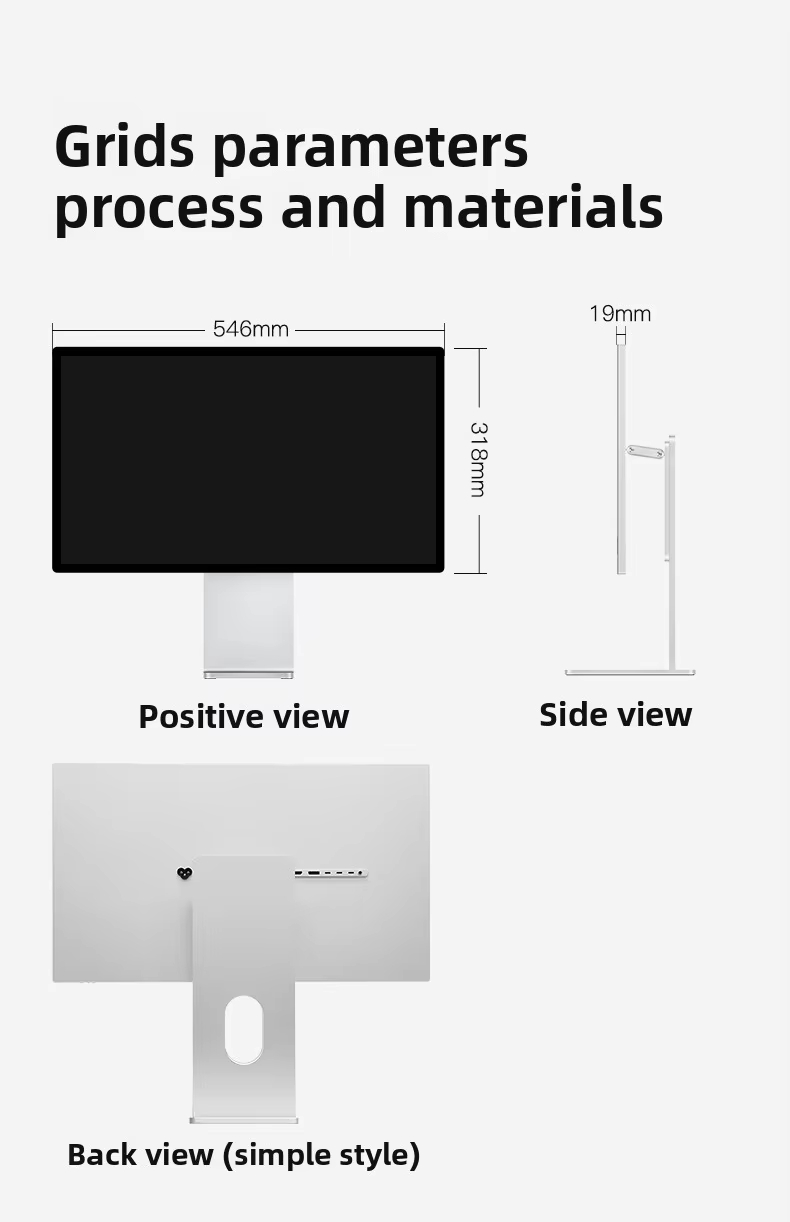

• Durable Construction: High-strength full aluminum alloy body with CNC precision machining, sandblasting, and anodizing, offering a sophisticated, resilient finish.

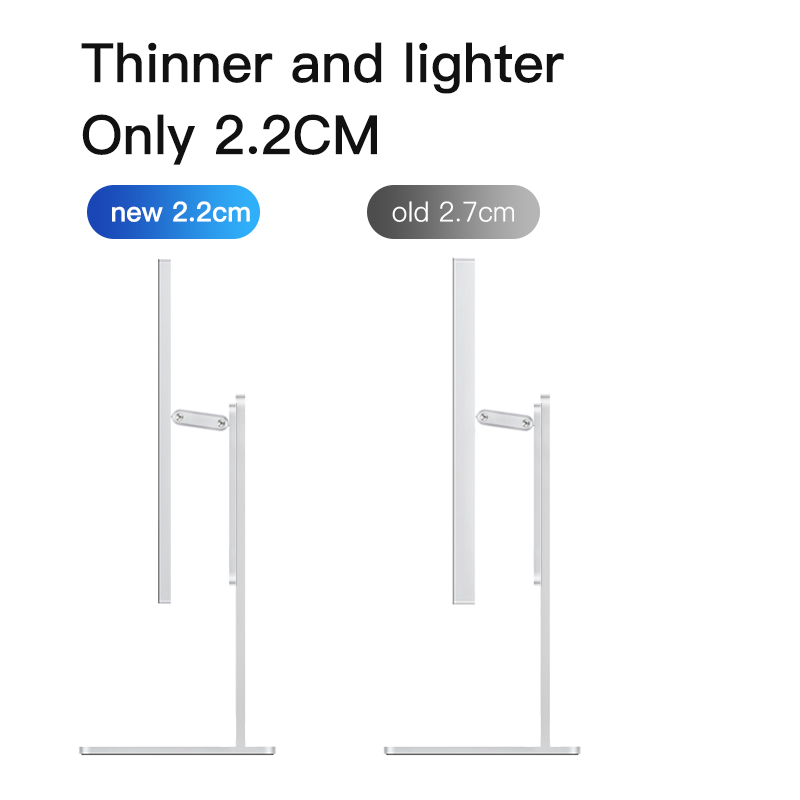

• Ergonomic Flexibility: Removable stand with VESA™ 100 mm mounting holes. The quick-release mechanism and fluid rotation support height adjustment and multi-angle rotation, accommodating diverse user postures.

• Peripheral Expansion: Equipped with 2 USB Type-C downstream data expansion ports for convenient accessory connection.

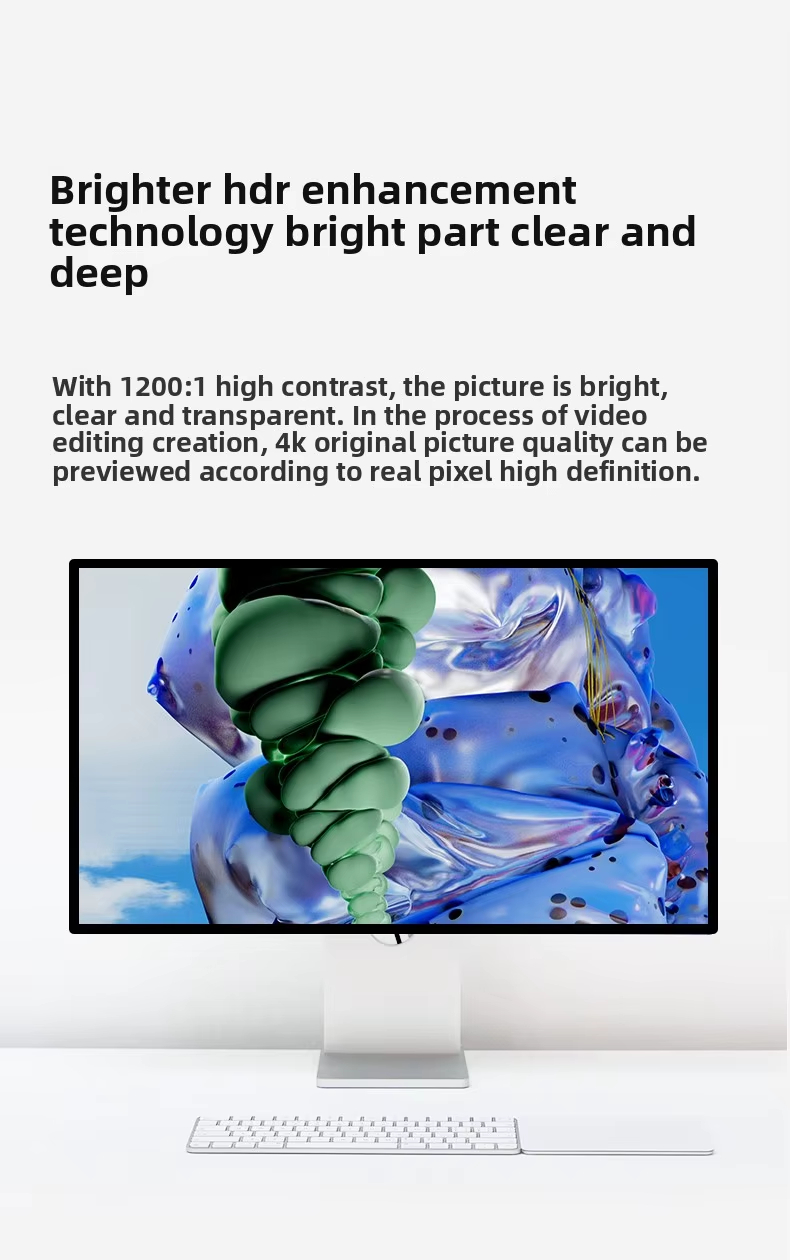

• Enhanced Dynamic Range: HDR support (HDR10) reveals nuanced details in both highlights and shadows.

• Eye Care Technology: Software-based blue light reduction function, designed to alleviate visual fatigue during prolonged data analysis sessions.

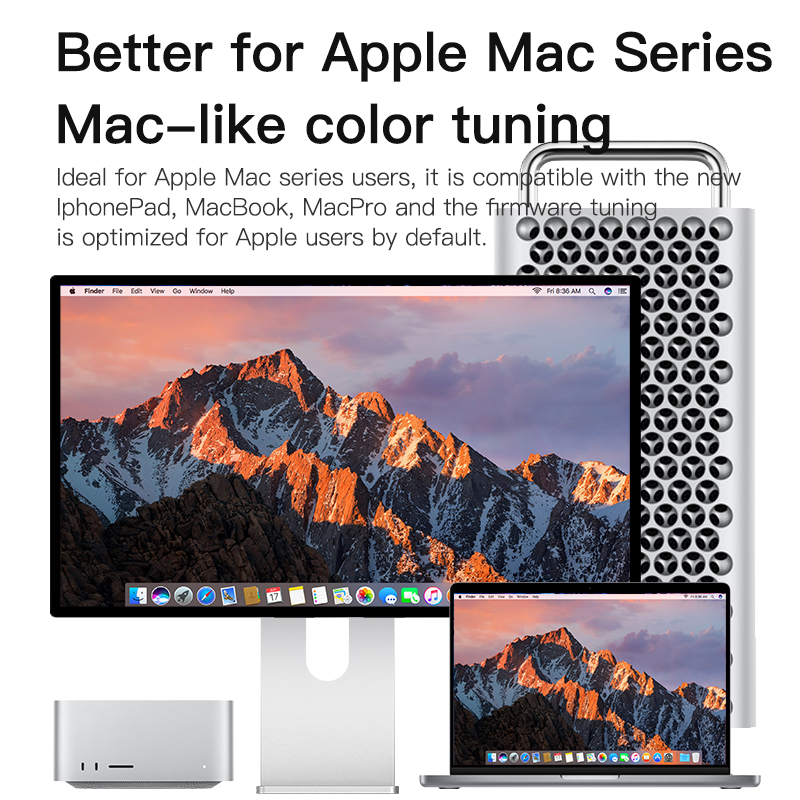

• Cross-Platform Synergy: Fully compatible with Mac and Windows systems, supporting HiDPI scaling and native keyboard brightness adjustments to naturally blend into professional workflows.

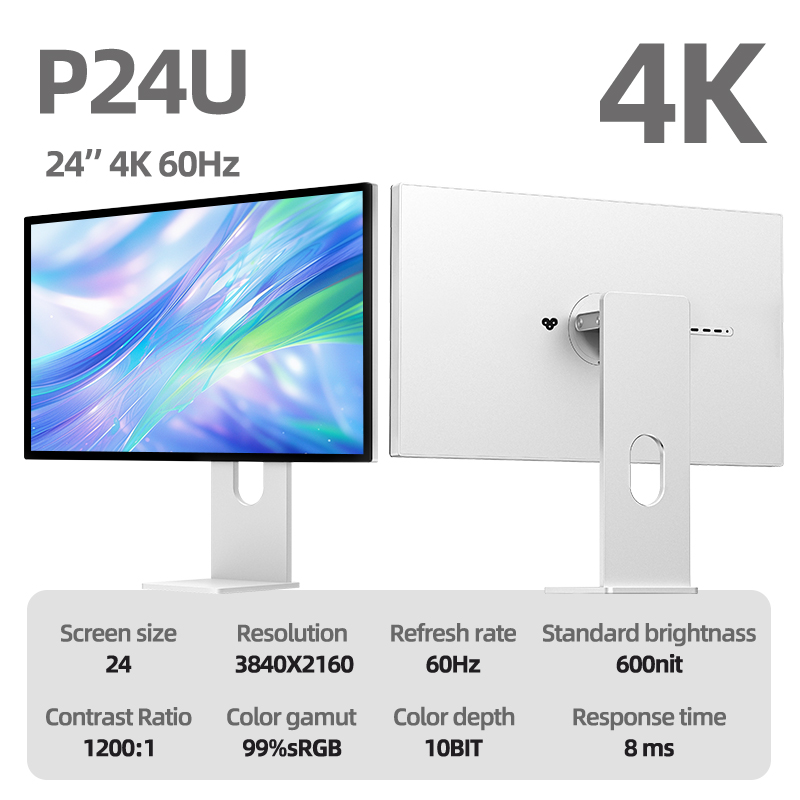

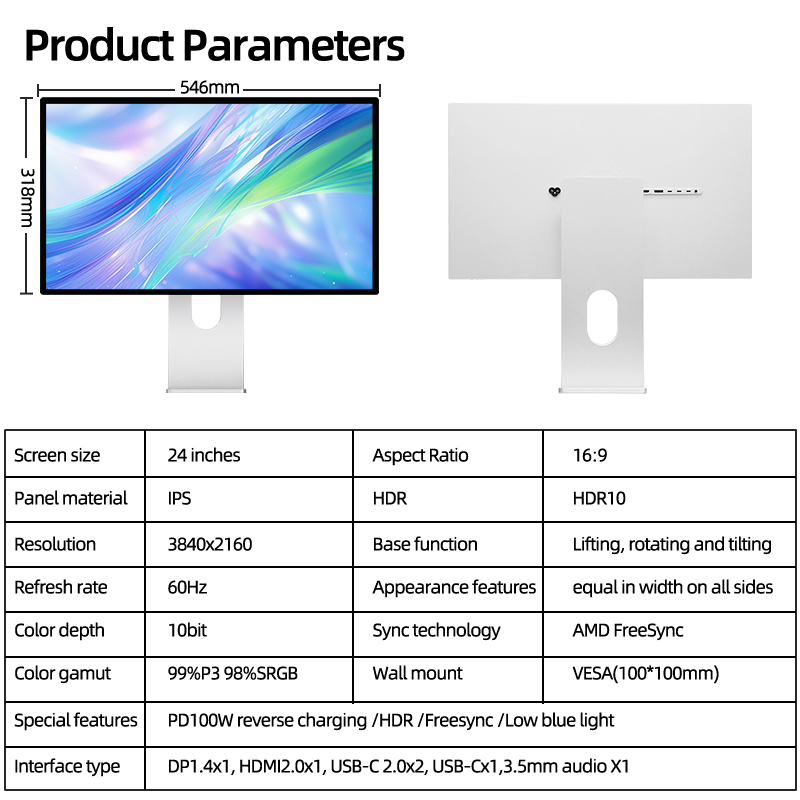

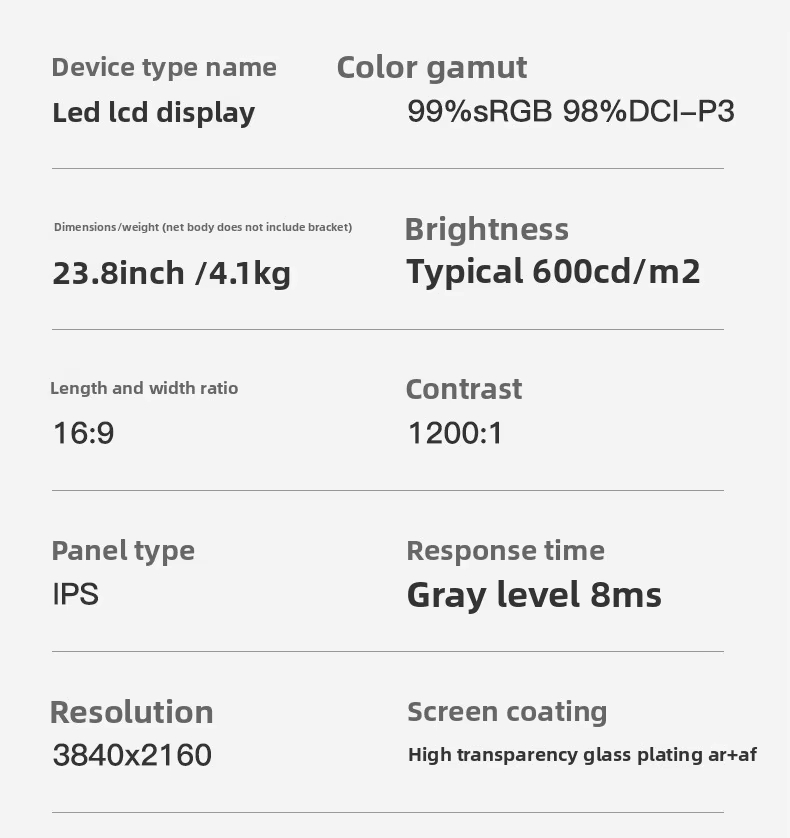

Technical Specifications

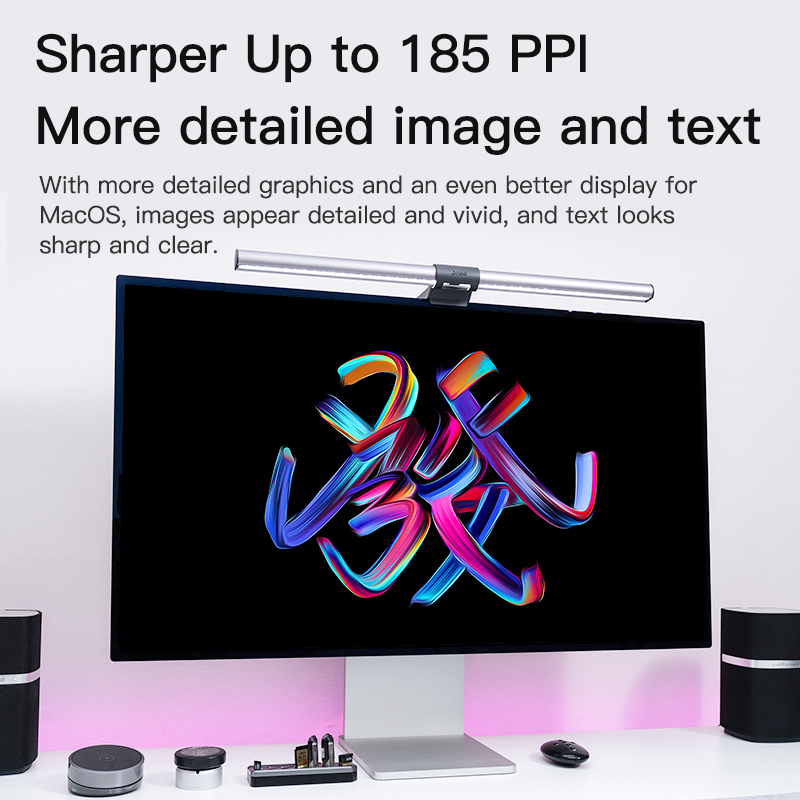

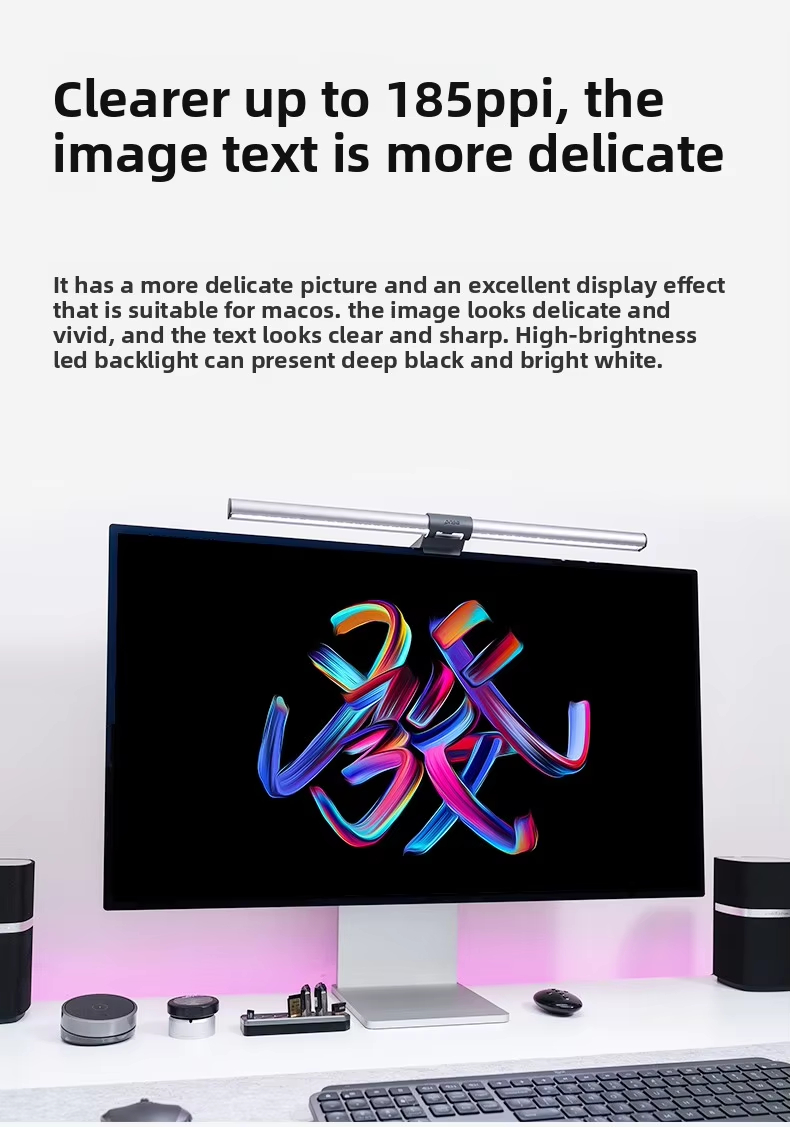

When evaluating displays for specialized tasks, technical specifications provide the foundation for informed procurement decisions. The Kuycon P24U is meticulously engineered to meet stringent operational demands. From its 185 PPI pixel density that ensures razor-sharp text clarity, to the robust 1200:1 contrast ratio that delivers deep, inky blacks, every parameter is optimized for professional performance. The inclusion of a 60Hz refresh rate and an 8ms GTG response time guarantees fluid transitions during video playback and interface navigation. Furthermore, the energy-efficient design, with a typical power consumption of 42W, aligns with modern sustainability goals. Below is the comprehensive technical data sheet detailing the exact capabilities of the Kuycon P24U.

Enterprise Deployment & Quality Assurance

Deploying high-performance monitors across an organization requires not only exceptional hardware but also reliable support and rigorous quality control. The Kuycon P24U is designed with large-scale implementation in mind. The standardized VESA 100mm x 100mm mounting interface allows IT departments to easily integrate these units onto custom monitor arms or multi-display arrays, maximizing desk real estate in trading floors, control rooms, or creative agencies.

Streamlined Connectivity & Workspace Efficiency

The direct integration of the 100W PD USB-C hub means that employees can dock their laptops instantly, transforming a mobile device into a full-fledged desktop workstation with a single connection. This dramatically reduces the need for external power bricks and docking stations, lowering overall procurement costs and simplifying cable management across the office floor.

Rigorous Quality Control Standards

Beyond the physical hardware, we understand the critical importance of reliability in professional environments. Each Kuycon P24U undergoes a rigorous secondary quality inspection before shipment to ensure that the panel uniformity, color calibration, and structural integrity meet our exacting standards. This meticulous attention to detail minimizes the risk of out-of-box failures and ensures immediate productivity upon deployment.

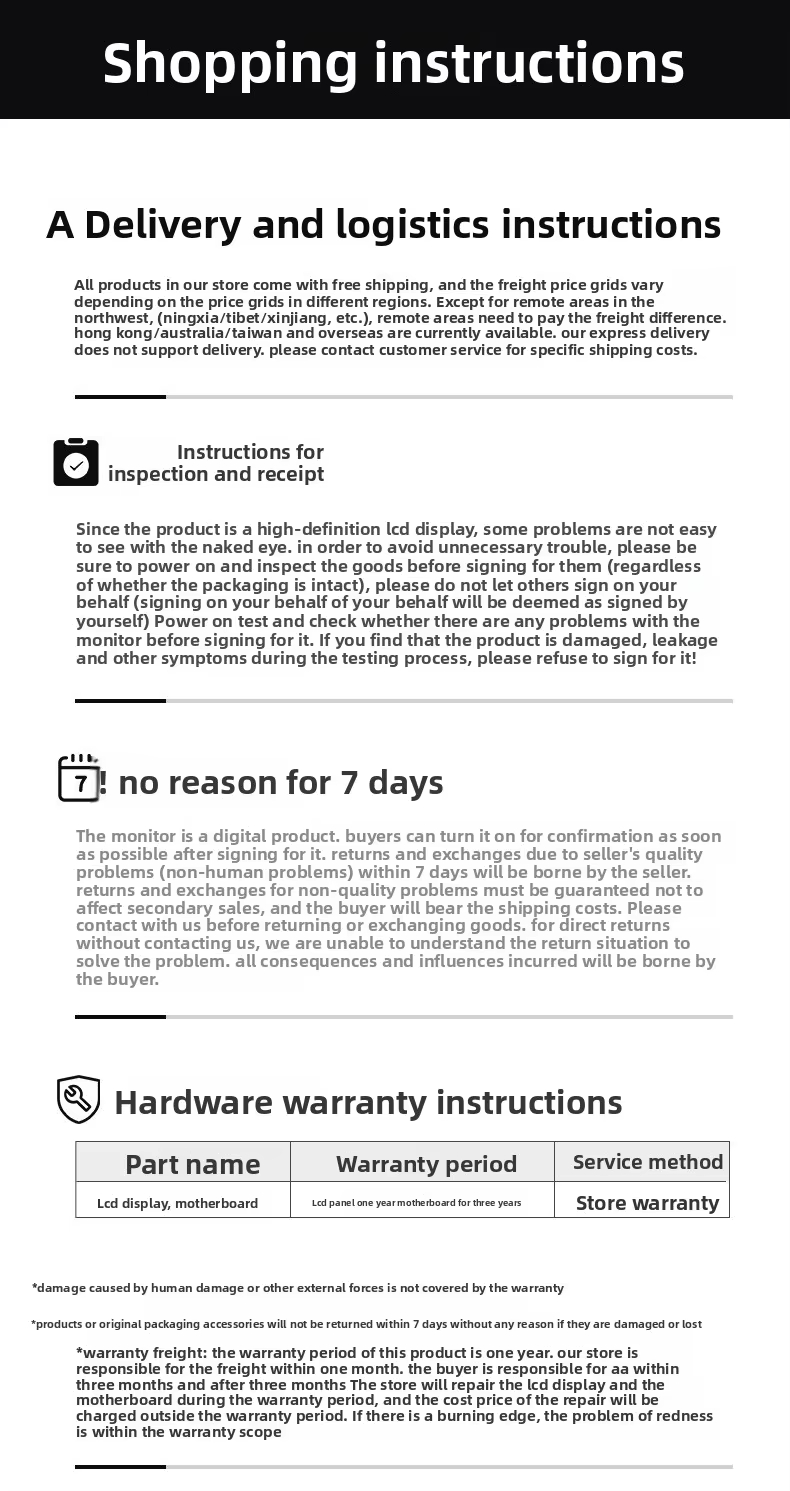

Dedicated After-Sales Support

Furthermore, our comprehensive commercial warranty and dedicated technical expert support provide peace of mind, ensuring that any operational inquiries are addressed swiftly. By prioritizing both ergonomic well-being through advanced eye-care technologies and long-term durability via premium aluminum construction, the P24U stands as a strategic asset for any forward-thinking enterprise.
