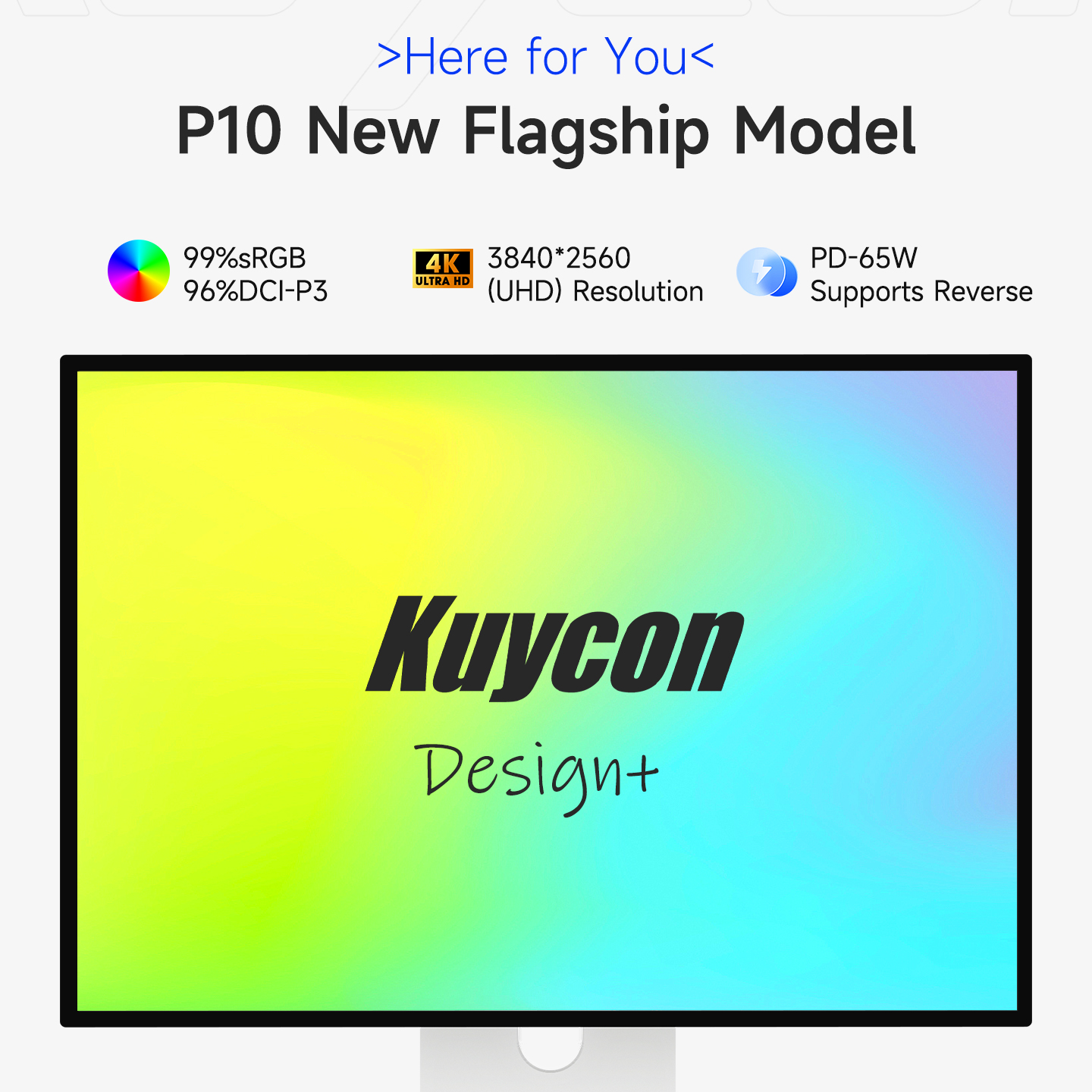

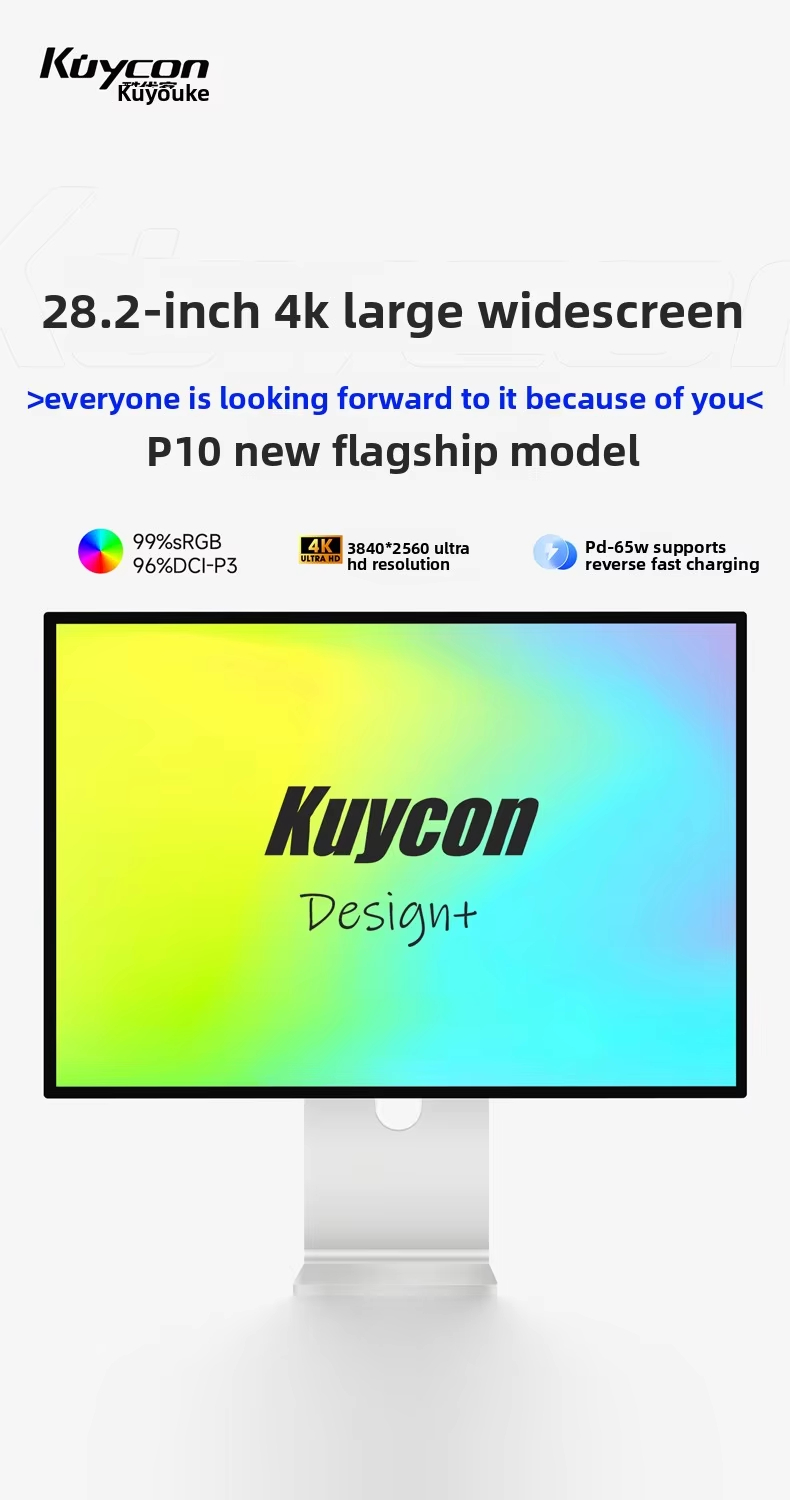

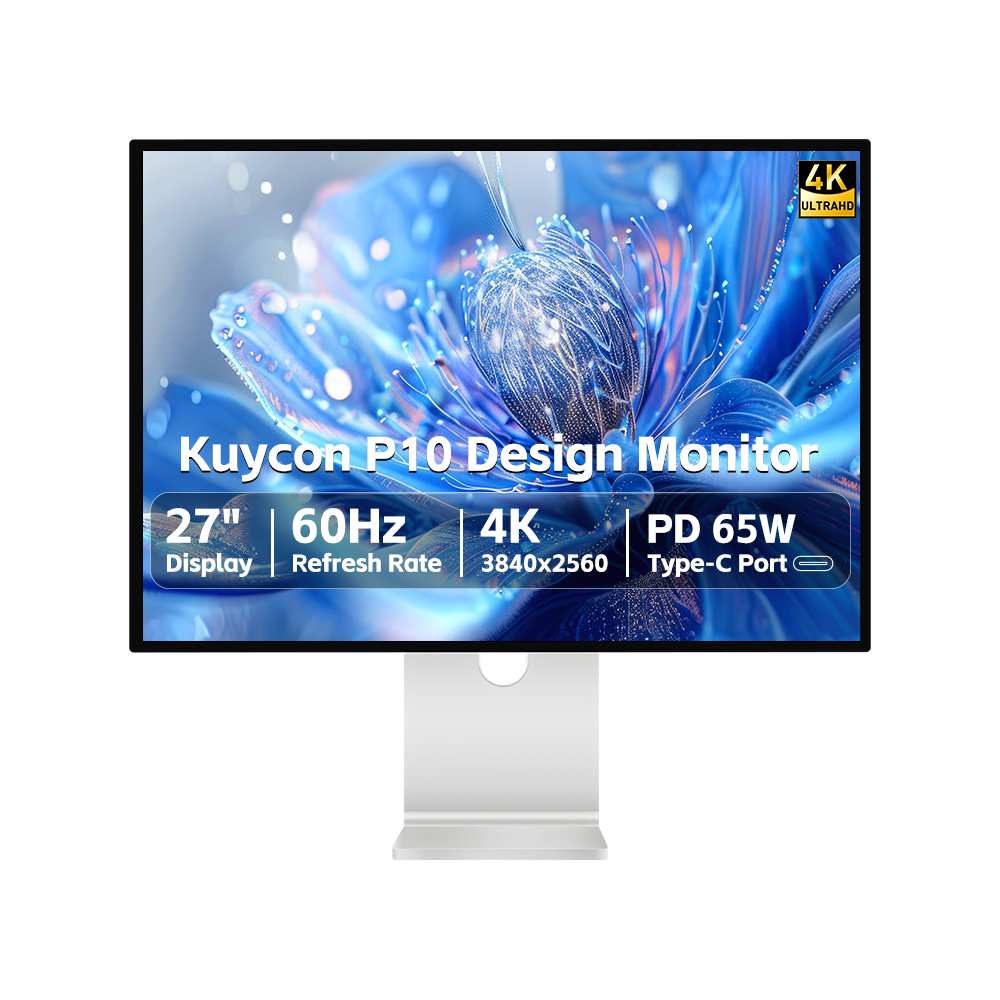

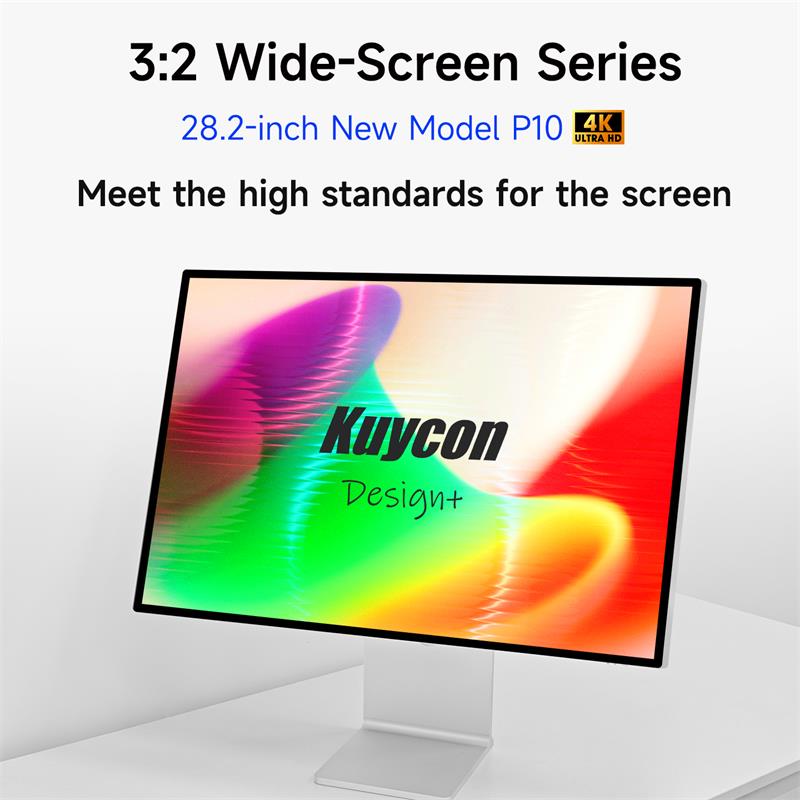

Kuycon P10 28.2" IPS Design Monitor With 3840x2560 Resolution

Kuycon P10 28.2" IPS Design Monitor: Precision for Professionals

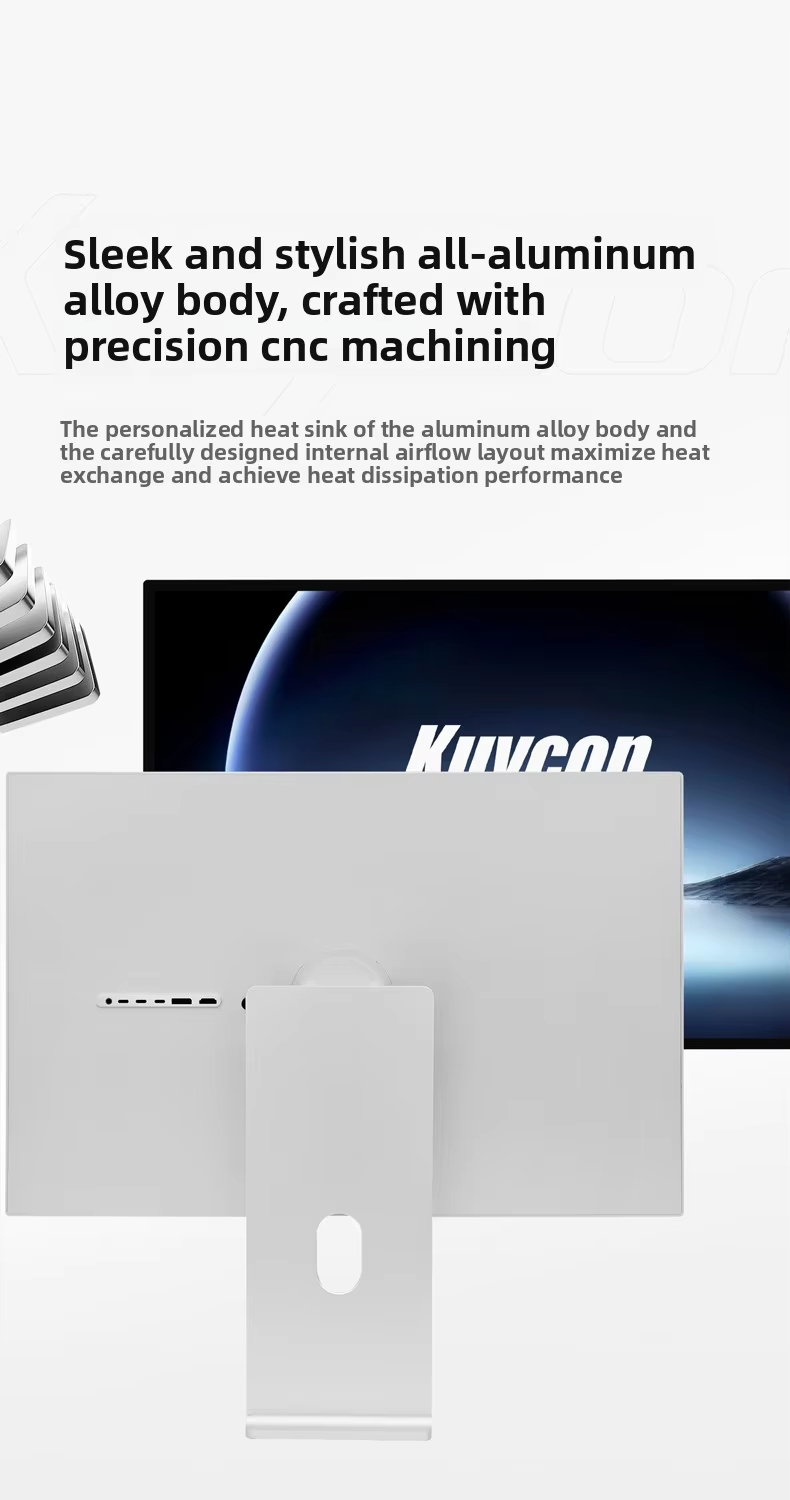

The Kuycon P10 monitor uses a third-generation IPS display, engineered specifically to meet the rigorous demands of creative studios, software development teams, and data-intensive workspaces. Crafted with a 6063 Aluminum Alloy CNC body, the monitor presents a sleek, minimalist aesthetic while ensuring exceptional thermal dissipation during continuous, high-intensity operation. Running your hand along the chassis reveals the premium tactile feedback of its 180-grit sandblasted and anodized finish, a testament to its meticulous manufacturing process. The solid, reassuring weight of the aluminum structure (5.35KG for the body alone) speaks volumes about its industrial-grade durability, designed to withstand the daily rigors of a bustling professional environment.

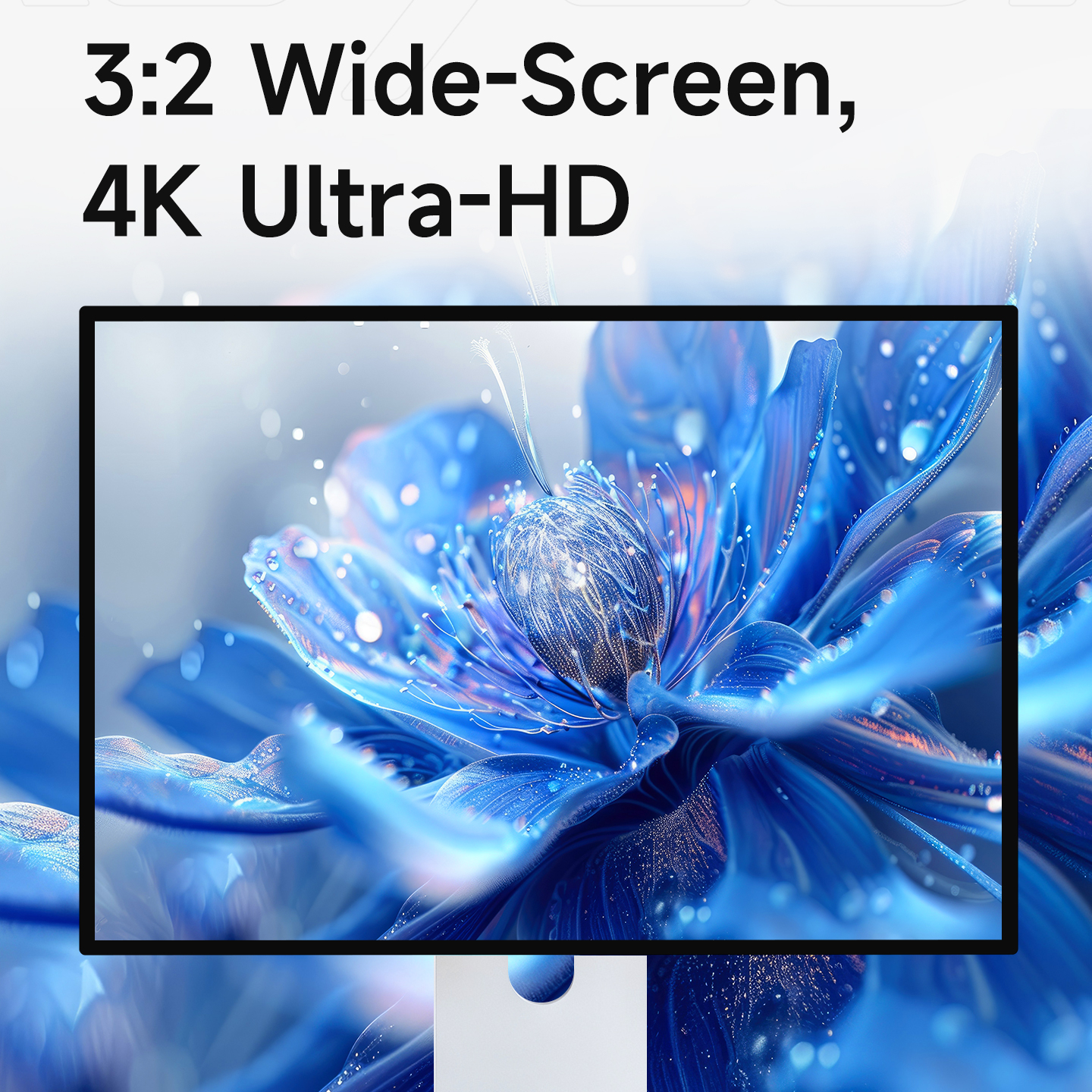

At the core of this display is a unique 3:2 aspect ratio, providing significantly more vertical screen real estate compared to traditional 16:9 monitors. This vertical advantage is a game-changer for productivity, allowing professionals to view more lines of code, expansive data spreadsheets, and full-scale design layouts with less scrolling. The OGS fully laminated glass panel with a high-transparency mirror finish ensures that every pixel is delivered with striking clarity, eliminating the muted, hazy look often found on standard matte displays. The visual depth and crispness allow for precise evaluation of digital assets, making it an indispensable tool for visual media experts.

Core Display & Connectivity Capabilities

Monitor features include:

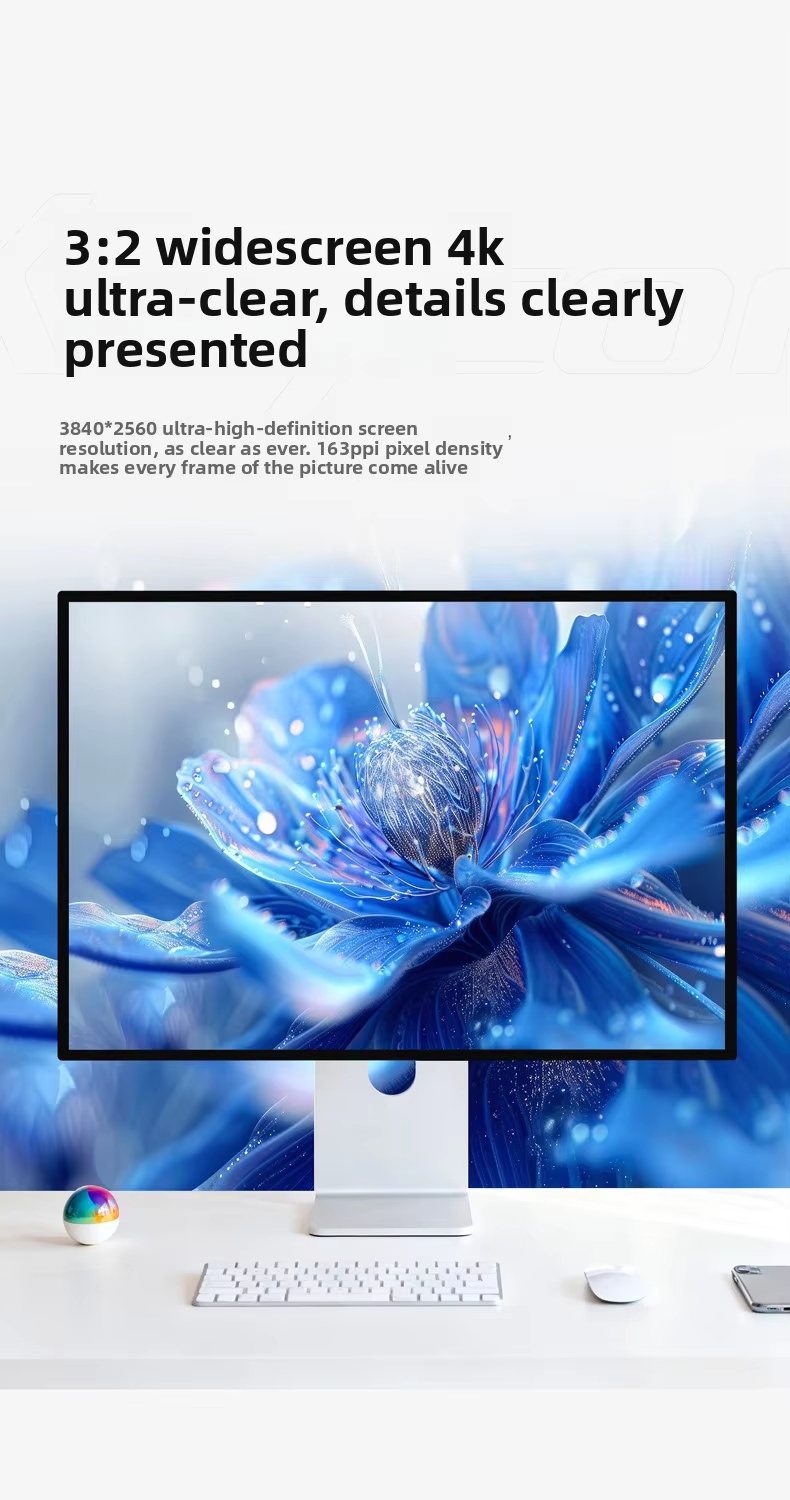

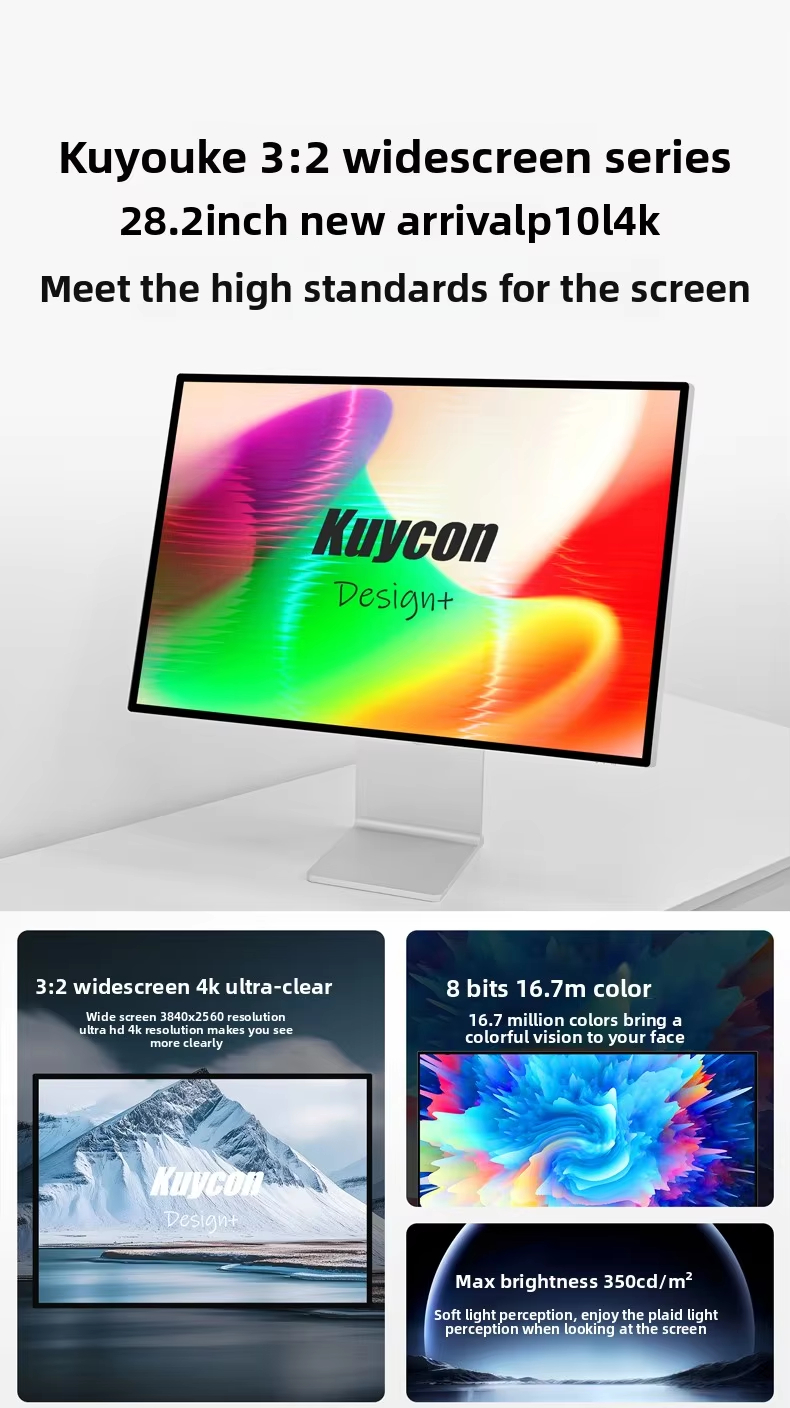

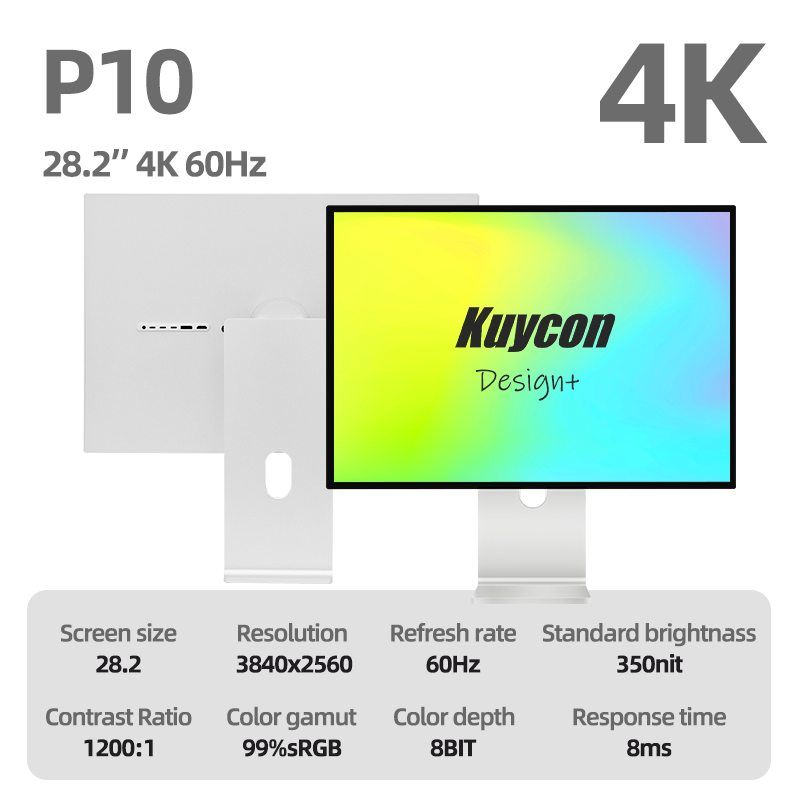

• 28.2-inch viewable area (measured diagonally) 3840 × 2560 (3:2) resolution, up to 9.83 million pixels, 163 PPI, 8-bit color depth. This dense pixel configuration ensures razor-sharp text and intricate image details, reducing eye strain during intricate design tasks.

• New-generation IPS display panel, providing wide viewing angles and consistent color reproduction across the entire screen, essential for collaborative reviews.

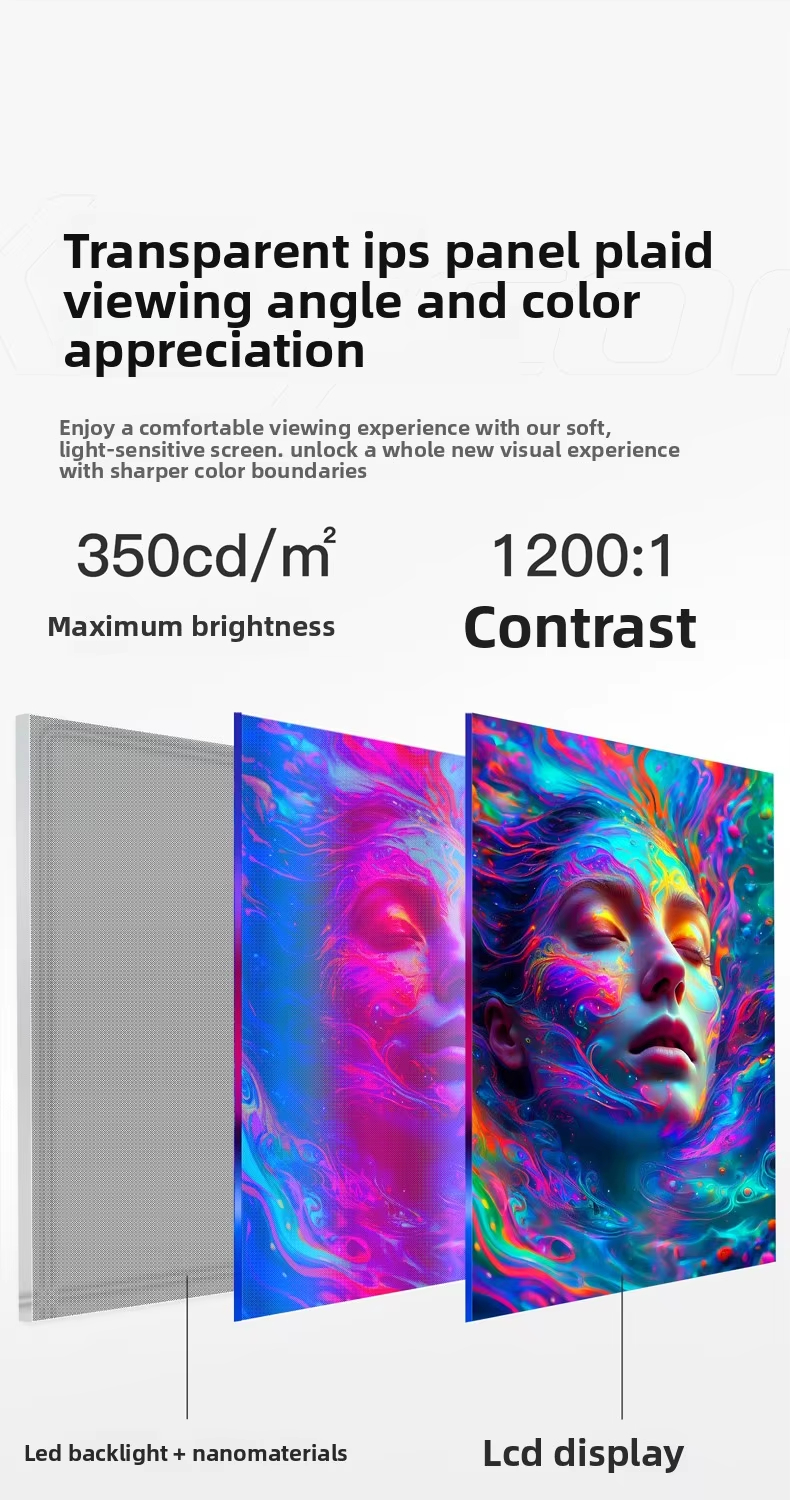

• Maximum brightness: 350 cd/m², offering optimal visibility and vibrant imagery even in well-lit studio environments.

• Contrast ratio up to 1200:1, delivering deep blacks and crisp whites for accurate contrast evaluation in visual media.

• Supports up to 60Hz refresh rate, ultra-fast response time: 8ms (GTG), ensuring smooth cursor movement and fluid playback of interface animations.

• Color gamut coverage: 99% sRGB & 96% DCI-P3 Supports sRGB gamut clamping and Mac mode display. Each unit undergoes strict factory calibration to achieve professional-grade accuracy right out of the box.

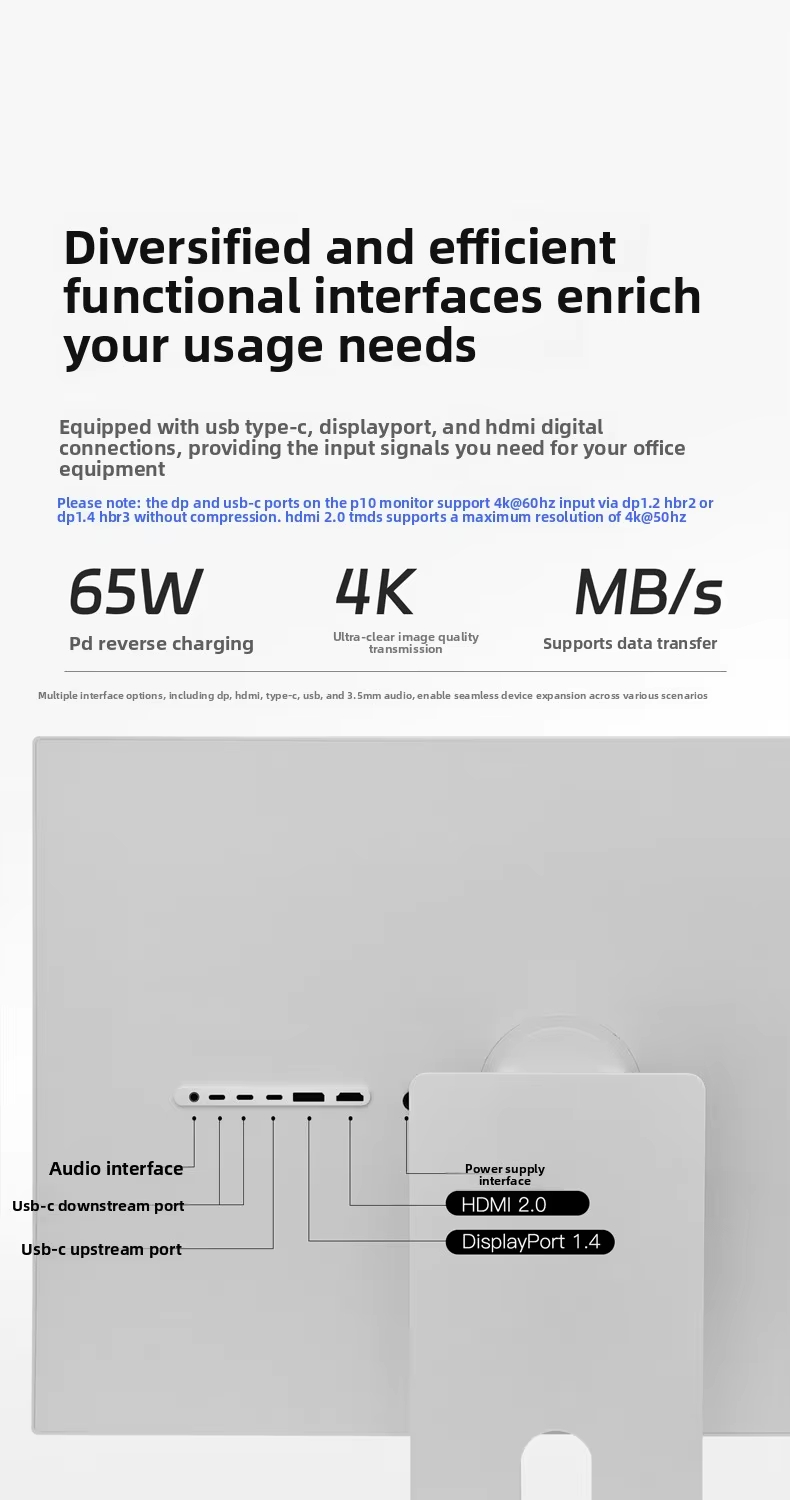

• Digital connectivity via USB Type-C, DisplayPort and HDMI, providing versatile integration with diverse existing workstation setups and legacy hardware.

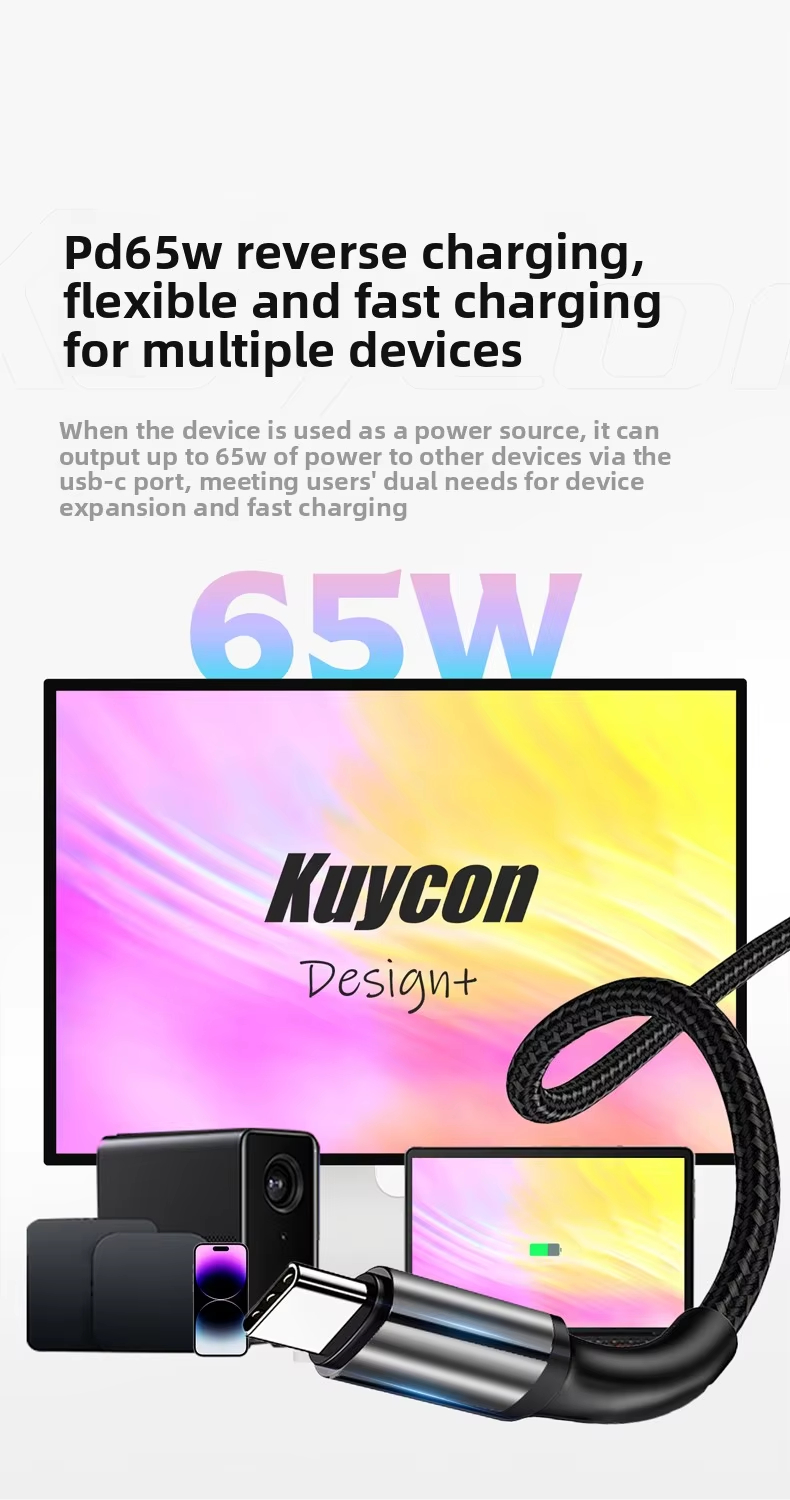

• Delivers power to compatible laptops at 65W via USB Power Delivery over a single USB Type-C cable,(100W max optional), while receiving video and data signals; compatible with Thunderbolt 4/5 / USB4. This drastically reduces desktop clutter and simplifies deployment.

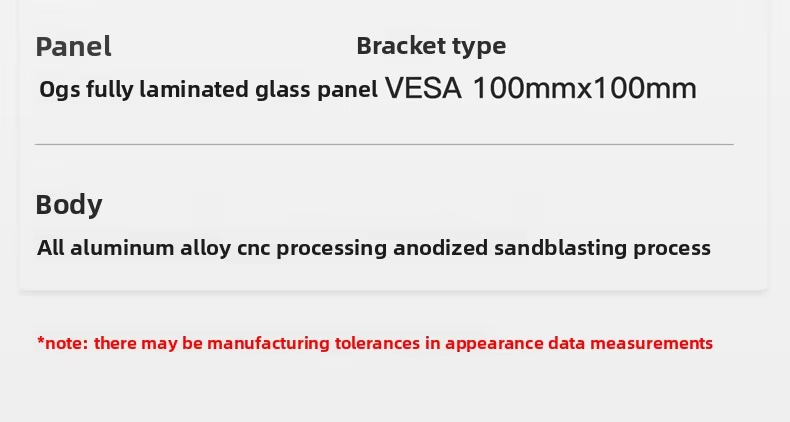

• Removable stand with VESA™ 100 mm mounting holes, allowing for flexible mounting on ergonomic monitor arms or multi-screen wall brackets.

• Equipped with 2 USB 2.0 Type-C downstream data expansion ports for convenient peripheral connections directly at the desktop level.

• Supports DisplayHDR 400, enhancing the dynamic range for HDR content creation and detailed shadow inspection.

• ΔE-Delta-E <2, guaranteeing that the colors you see on screen are true to life, a critical requirement for photography, video editing, and brand asset management.

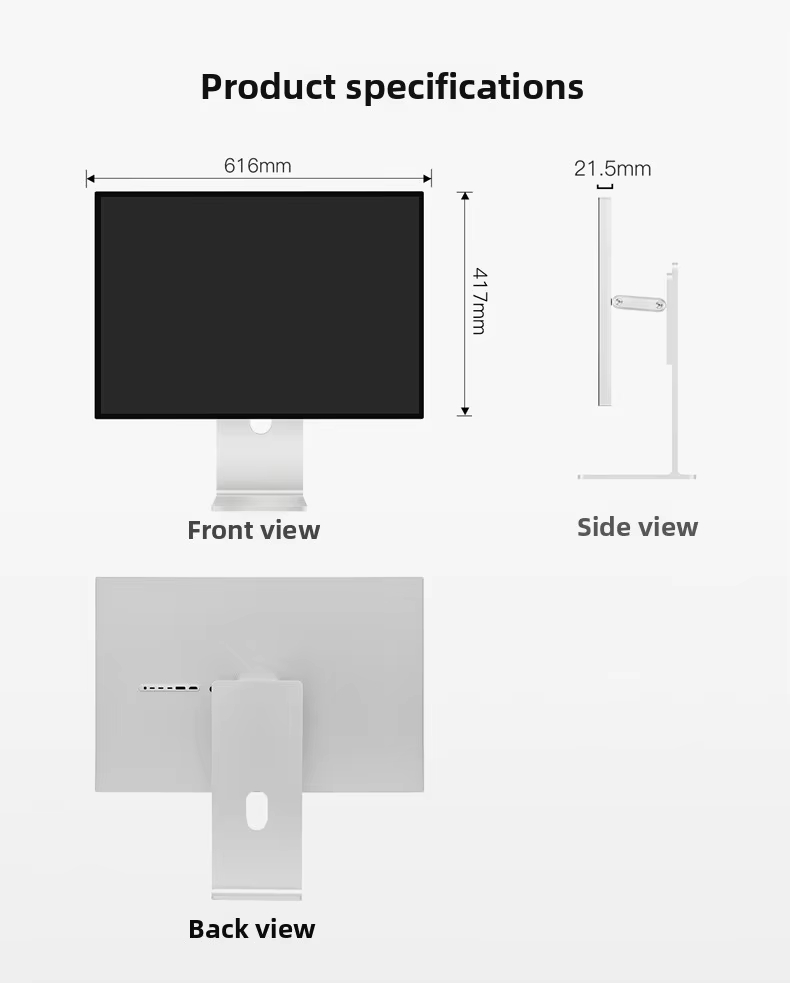

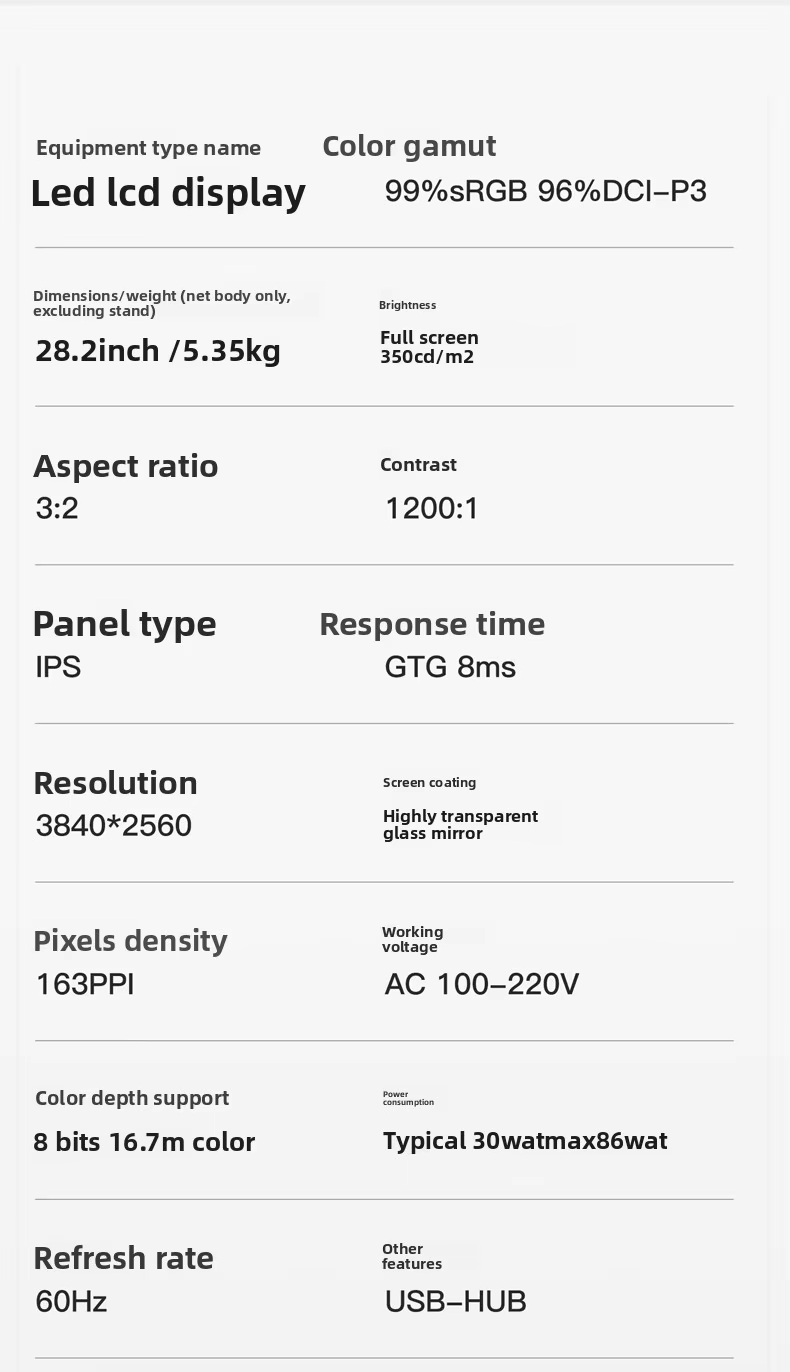

The following technical data sheet outlines the precise operating parameters, physical dimensions, and electrical requirements of the Kuycon P10. These specifications are provided to assist IT procurement teams and facility managers in verifying compatibility with existing infrastructure, power delivery systems, and ergonomic mounting solutions.

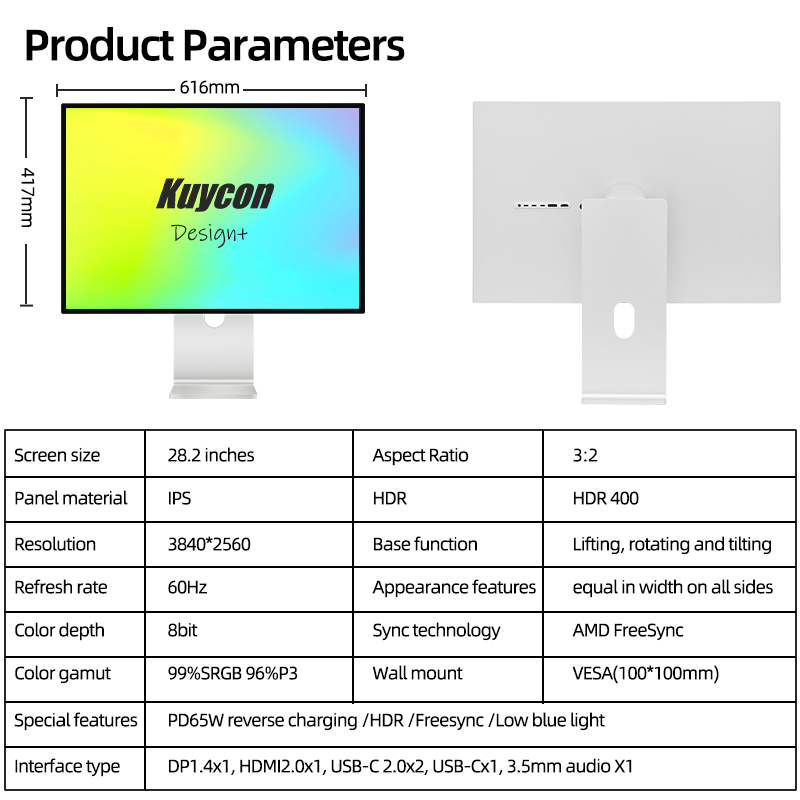

Specifications

Workspace Integration & Corporate Procurement

The Kuycon P10 is meticulously engineered to elevate the modern professional workspace. The integration of a multi-functional stand offers comprehensive height adjustment and multi-angle rotation. This ergonomic flexibility is crucial for maintaining proper posture during extended work sessions, significantly reducing neck strain and visual fatigue for your team members. The anti-glare properties of the high-transparency glass mirror finish further protect against harsh overhead lighting common in large office environments, ensuring comfortable viewing from morning until evening.

For organizations focused on seamless collaboration and clean desk policies, the monitor's single-cable USB-C architecture transforms any desk into an instant, fully capable docking station. By delivering up to 65W of power (with a 100W max optional upgrade) alongside high-bandwidth video and data transmission, it eliminates the tangled mess of traditional wiring. This streamlined ecosystem is fully compatible with Thunderbolt 4/5 and USB4, ensuring that laptops and mobile workstations can connect effortlessly. Employees can transition between hot-desks or meeting rooms instantly, keeping your workforce agile and highly productive without relying on bulky external power bricks.

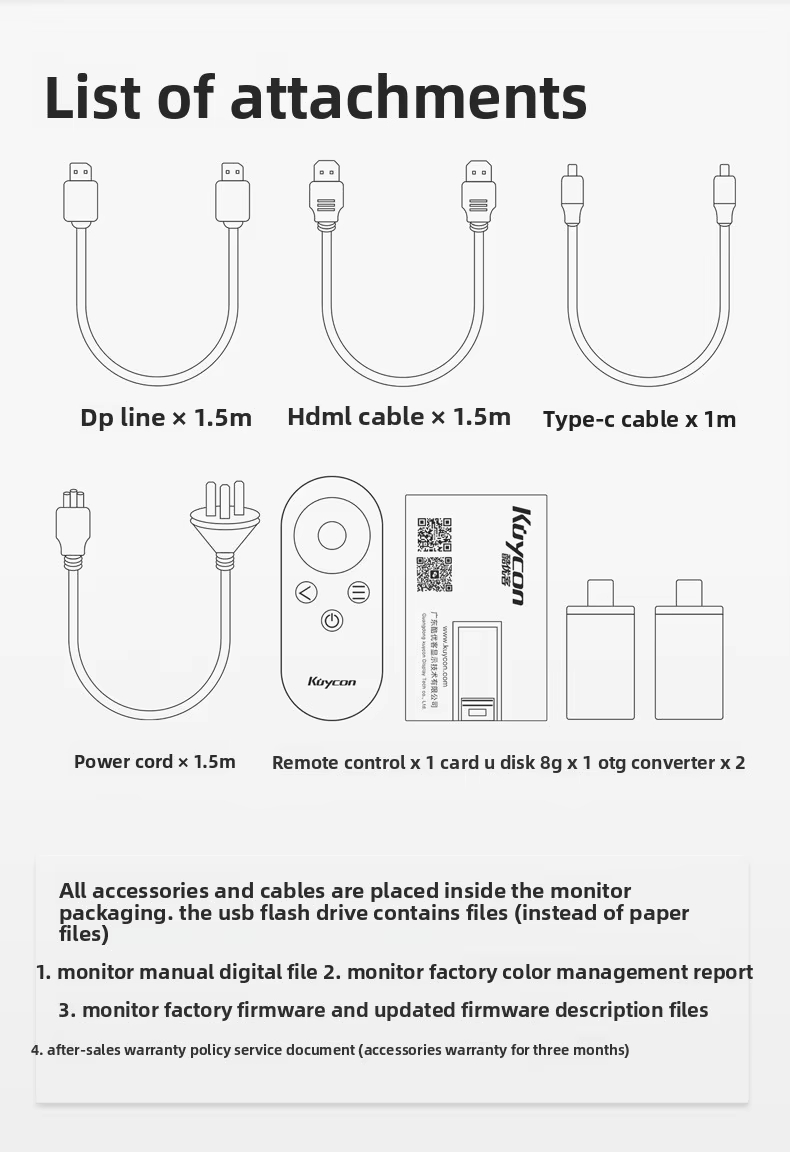

When outfitting a design agency, software firm, or financial institution, reliability and post-deployment support are paramount considerations. We offer flexible volume acquisition programs tailored to your organization's specific deployment schedule and budget cycles. Every procurement is backed by transparent logistics tracking, a straightforward 14-day return and exchange policy, and comprehensive enterprise-level warranty services. This robust support structure is designed to minimize unexpected downtime, reduce long-term maintenance overhead, and provide absolute peace of mind for your hardware investment. Built-in power supplies and included IR remote controls further simplify the setup process for IT administrators, making the Kuycon P10 a truly deploy-ready solution.
